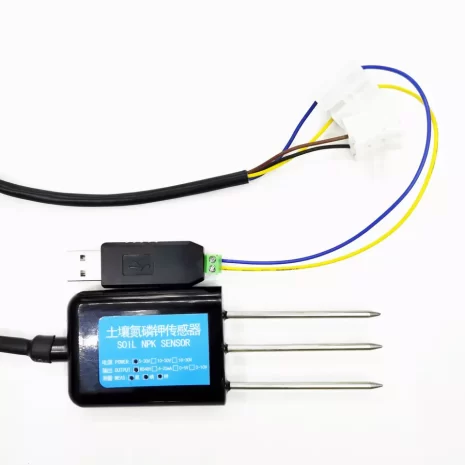

Soil NPK Sensor (RS485)

Soil NPK sensor
Probe type: Probe electrode
Measurement parameters : Soil NPK Value
Measuring range: 0 ~ 1999mg/kg
Measurement accuracy: ±2%FS
Resolution: 1mg/Kg(mg/L)
Output signal: A:RS485 (standard Modbus-RTU protocol, device default address: 01)
Output signal with wireless: A:LORA/LORAWAN, B:GPRS, C:WIFI, D:NB-IOT

Software
Can send the free server and software to see the real time data and download the history data in the PC or mobile end with our wireless module

Supply voltage: 5~24VDC
Working temperature range: -30 ° C ~ 70 ° C
Stabilization time: 5-10 seconds after power on
Response time: <1 second
Sealing material: ABS engineering plastic, epoxy resin
Waterproof grade: IP68
Cable specification: Standard 1 meter (can be customized for other cable lengths, upto 1200 meters)

Installation:

Soil Surface measure method
1. Select a representative soil environment to clean up surface debris and vegetation
2. Insert the sensor vertically and completely into the soil
3. If there is a hard object, the measurement location should be replaced and re-measured
4. For accurate data, it is recommended to measure multiple times and take the average

Buried measure method
1. Make a soil profile in the vertical direction, slightly deeper than the installation depth of the bottommost sensor, between 20cm and 50cm in diameter.
2. Insert the sensor horizontally into the soil profile
3. After the installation is completed, the excavated soil is backfilled in order, layered and compacted, and horizontal installation is guaranteed.
4. If you have the conditions, you can put the removed soil in a bag and number it to keep the soil moisture unchanged, and backfill it in reverse order.

Measure Notes
1. The sensor needs to be used in 20% -25% soil humidity environment
2. All probe must be inserted into the soil during measurement.
3. Avoid excessive temperature caused by direct sunlight on the sensor. Pay attention to lightning protection in the field
4. Do not pull the sensor lead wire with force, do not hit or violently hit the sensor.
5. The protection grade of the sensor is IP68, which can soak the entire sensor in water.
6. Due to the presence of radio frequency electromagnetic radiation in the air, it should not be energized in the air for a long
time.
