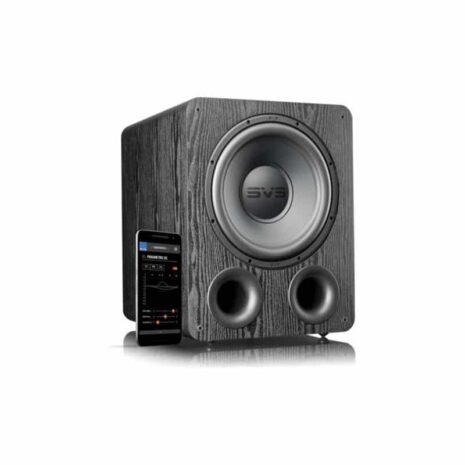

SVS PB-1000 Pro Subwoofer (Black Ash)
Room-shaking output well below the threshold of audibility, with pinpoint control and accuracy, the PB-1000 Pro obliterates performance expectations for subwoofers anywhere near the price.
Features:
- 12″ high-excursion SVS driver
- Bass-Reflex via Exclusive Dual 2.5″ firing Ports
- Class D Amplifier with 325+W RMS / 820+W Peak
- Features the SVS Subwoofer DSP smartphone app
- Iso-elastomer feet, non-resonant extra-thick ABS fabric mesh grille included
- Dimensions: 18.9″ (H) 15″ (W) 20″ (D)
SVS PB-1000 Pro Subwoofer
The original SVS PB-1000 rocked the subwoofer world with unparalleled performance at its price
and beyond. Now, the PB-1000 Pro raises the bar even higher with greater low frequency output,
deeper bass extension down to a guttural 17Hz, performance-enhancing dual port cabinet design,
and a massive upgrade to the user experience.

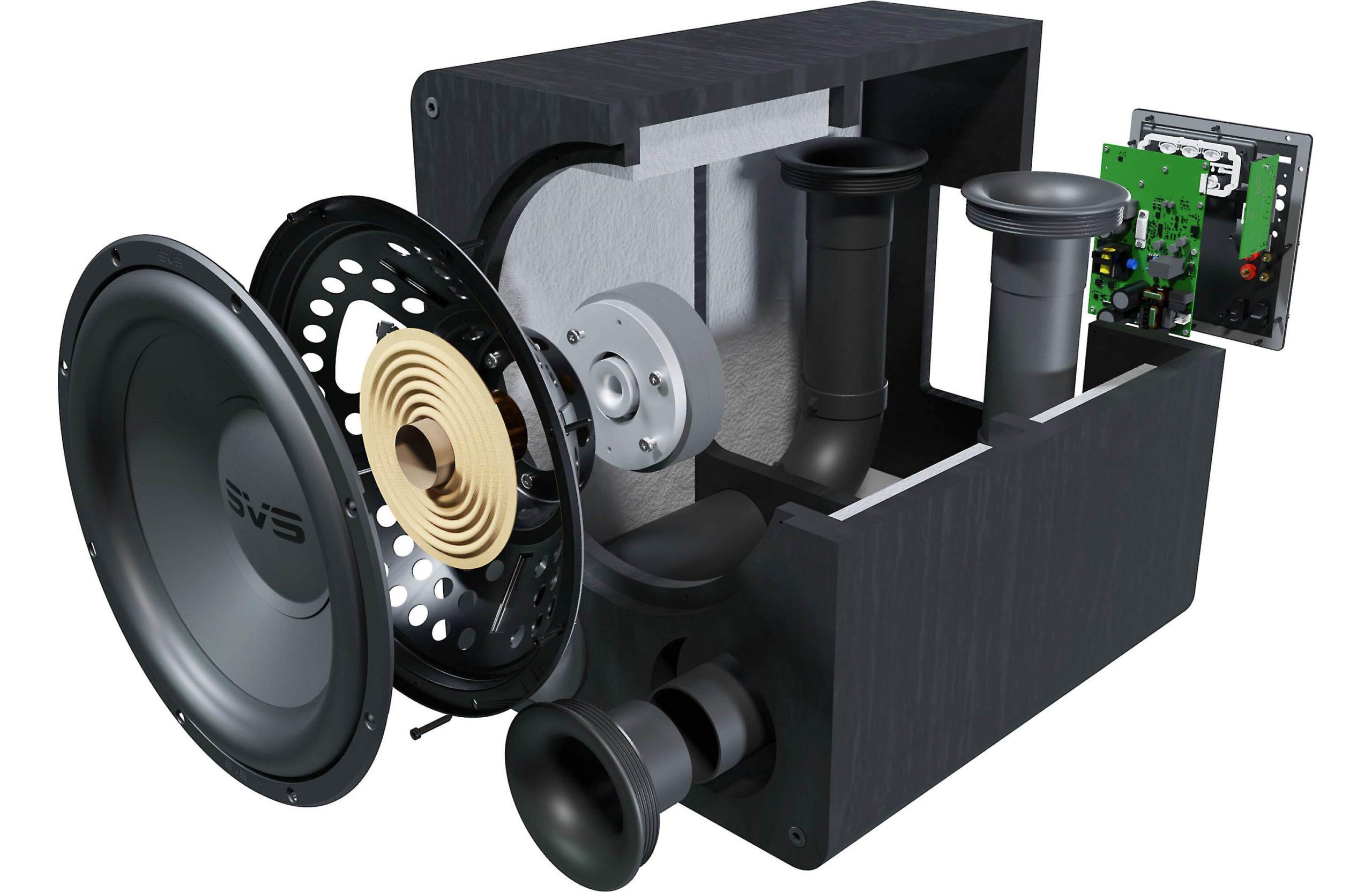

A complete reimagination of the original 10-inch driver, the PB-1000 Pro features an all-new
12-inch high-excursion driver with dual high-grade ferrite magnets and FEA-optimized internal
motor architecture for extreme excursion and massive, pristine output. With innovations to the
cone, surround, voice coil, and motor assembly, the unflappable 12-inch driver unleashes
room-shaking bass never-before-heard from a ported subwoofer anywhere near the price.
SVS PB-1000 Pro Subwoofer Specifications:
Summary:
FREQUENCY RESPONSE : 17-260 Hz +/- 3 dB (standard mode), 19-260 Hz +/- 3 dB (sealed mode)
MAXIMUM ACOUSTIC OUTPUT :
AMPLIFIER Type : Class D with Analog Preamp Stage
AMPLIFIER POWER (CONT/PEAK) : 325W RMS / 820+W Peak
WOOFER : 12” Long-Throw Driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Bass-Reflex via front-firing ports
INPUTS : Stereo RCA/LFE
HEIGHT : 18.9” (479mm)
WIDTH : 15” (380mm)
DEPTH : 19.2” (488mm)
WEIGHT : 42.5 lbs (19.3kg)
FINISH : Black Ash
1. Frequency Response / Acoustic Data:
- 17-260 Hz +/- 3 dB (standard mode)
- 19-260 Hz +/- 3 dB (sealed mode)
- Expect 2-3 Hz deeper extension in small to mid-size rooms.
- 2-meter ground plane away from reflective structures (quasi-anechoic).
- Roll-off slope specifically optimized to take maximum advantage of available room gain.
2. Subwoofer Specs:
- Protective non-resonant extra-thick ABS fabric mesh grille
- Iso-elastomer feet included
- Extra heavy-duty, high current power cord 6′
- Quick Start Guide
- Port Plugs (free upon request)
- Unbalanced stereo input/output
- Speaker Level Stereo Input
- Auto/On and Trigger options through app, 3-12V AC/DC trigger
- RoHS compliant, lead-free construction, world-wide safety certifications
- Green 0.5-watt low standby power consumption
- Dual 2.5-inch ports
- Dimensions (w/ grille): 18.9” (479mm) H X 15” (380mm) W X 20” (509mm) D
- Dimensions (without grille): 18.9” (479mm) H X 15” (380mm) W X 19.2” (488mm) D
- Shipped Dimensions: 23.4” (594mm) H 19.9” (506mm) W X 24.4” (619mm) D
- Weight (unboxed): 42.5lbs (19.3kg) with Grille
- Shipped Weight: 51.6lbs (23.4kg)
3. Driver Specs:
- All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration.
- 9.26lb (4.2kg) pound Woofer with 6.91lb (3.14kg) pounds motor
- 13.1mm Xmax, 26.8mm Xmech precision aligned excursion
- 1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
- Premium high-purity copper voice coil winding design minimizes distortion and power compression
- with maximum heat dissipation, linearity, and tuned magnetics for high excursion
- Two-piece high grade oversized Y35 Ferrite magnet motor
- High Temperature 3003-H18 aluminum former/bobbing
- 6” composite cotton-poly extreme excursion linear spider
- Dual 24-strand copper-alloy high-temperature leads
- Proprietary injection molded gasket and NBR extreme-excursion surround
- Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
- Top plate assembly with low carbon 1010 steel for optimal magnetics
- Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling
- and electromagnetics
- 12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength,
- and energy transference
- Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
- Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at full range of excursion
4. SVS Sledge-325D Amplifier Specs:
- 325 watts RMS, 820+ watts peak power output Class D design
- 50Mhz Analog Devices Audio DSP, high resolution double precision 56bit filtering
- Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input.
- High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower
EMI and highest efficiency. - Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
- SVS BLE control app for iOS and Android contains 3 complete name-able and customizable
User presets, supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ’s per preset, - adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers.
- Customer EQ and DSP limiter settings specifically for the 1000 Pro
- Input impedance 16kohm (unbalance RCA)
- Input impedance 20kohm (speaker level)
- New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED
bar display and easy push-button controls.
5. SVS App Specs:
- Bluetooth controlled subwoofer DSP smartphone app works with
iOS, Android and Amazon operating systems. - Easiest and most convenient way to adjust crossover frequencies,
parametric EQ, polarity, room gain and all other bass management functions. - Three convenient custom presets allow for perfect tuning in any room or system,
from your favorite seat. - Unique bidirectional feedback shows adjustments in real time on
both app and subwoofer interface. - Easy-to-follow tutorial provides clear guidance for all functions.
6. Accessories:
- Protective non-resonant extra-thick ABS fabric mesh grille
- Iso-elastomer feet included
- Extra heavy-duty, high current 6-foot power cord
- Quick Start Guide
| Weight | 23.4 kg |
|---|---|
| Dimensions | 61.9 × 50.6 × 59.4 cm |
| Frequency Response | 17-260 Hz +/- 3 dB (standard mode) |
| Amplifier | Class D with Analog Preamp Stage |
| Amplifier Power (Cont/Peak) | 325 W RMS / 850+ W Peak |
| Driver Components | 12” Long-Throw High Excursion Driver |
| Enclosure Material | MDF |
| Enclosure Type | Bass Reflex via Dual 2.5" Front-Firing Ports |
| Inputs | Unbalanced stereo input/output |
| Height | 18.9” (47.9cm) |
| Width | 15” (38 cm) |
| Depth | 20” (50.9 cm) |
| Weight | 42.5lbs (19.3kg) with Grille |
| Finishes | Black Ash |
