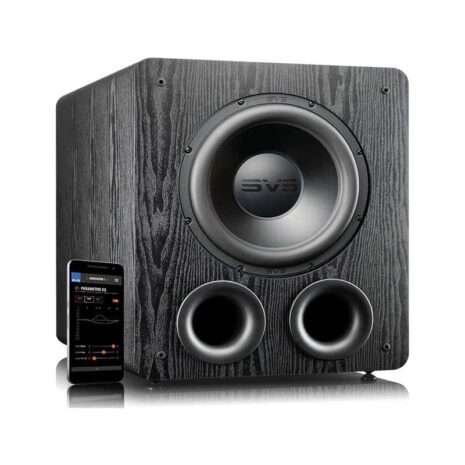

SVS PB-2000 Pro Subwoofer (Black Ash)
Breathtaking output and subterranean low frequency extension down to 16 Hz with pinpoint accuracy and control. Features all-new 12-inch SVS driver, 550 Watts RMS, 1,500+ Watts peak power Sledge amplifier with fully discreet MOSFET output, and SVS subwoofer DSP smartphone app. Optimized with dual port cabinet design for effortless bass with vanishingly low distortion.
Features:
- 12″ high-excursion SVS driver
- Bass-Reflex via Exclusive Dual 3″ firing Ports
- Class D Amplifier with 550+W RMS / 1500+W Peak
- Features the SVS Subwoofer DSP smartphone app
- Iso-elastomer feet, non-resonant extra-thick ABS fabric mesh grille included
- Dimensions: 20.9″ (H) 17.33″ (W) 23.6″ (D)
SVS PB-2000 Pro Subwoofer
Breathtaking output and subterranean low frequency extension down to 16 Hz with astonishing
detail and accuracy. PB-2000 Pro features all-new 12-inch high-excursion SVS driver and
550 watts RMS, 1,500+ watts peak power Sledge STA-550D amplifier with fully discrete MOSFET
output.
Harnessing the massive power while ensuring unerring control and room-energizing bass
response is a 50 MHz Analog Devices Audio DSP. PB-2000 Pro also features the SVS subwoofer
smartphone app for convenient control of volume, DSP functions, custom presets and more.
SVS PB-2000 Pro Subwoofer Specifications:
Summary:
FREQUENCY RESPONSE : 16Hz to 290Hz +/-3dB (standard mode), 17Hz to 290Hz +/-3dB (sealed mode)
MAXIMUM ACOUSTIC OUTPUT :
AMPLIFIER Type : Class D with Analog Preamp Stage
AMPLIFIER POWER (CONT/PEAK) : 550W RMS / 1500+W Peak
WOOFER : 12” Long-Throw Driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Bass-Reflex via Dual 3″ front-firing ports
INPUTS : Stereo RCA/LFE
HEIGHT : 20.9” (532mm)
WIDTH : 17.3” (440mm)
DEPTH : 23.6” (600mm)
WEIGHT : 64.8lbs (29.4kg) with Grill
FINISH : Black Ash
1. Frequency Response / Acoustic Data:
- 16Hz to 290Hz +/-3dB (standard mode)
- 17Hz to 290Hz +/-3dB (sealed mode)
- Expect 2-3 Hz deeper extension in small to mid-size rooms.
- 2-meter ground plane away from reflective structures (quasi-anechoic).
- Roll-off slope specifically optimized to take maximum advantage of available room gain.
2. Subwoofer Specs:
- Premium Black Ash finish option

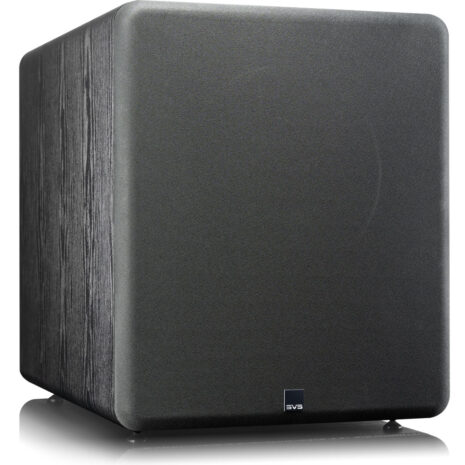

- Protective non-resonant extra-thick ABS fabric mesh grille
- Front-firing 12-inch high-excursion SVS driver
- Dual 3-inch ports
- Rear-mounted amplifier with Intelligent Control Interface (ICI)
- Iso-elastomer feet
- Robust Medium Density Fiberboard (MDF) cabinet construction
- Dimensions (w/ grille): 20.9” (532mm) H X 17.3” (440mm) W X 23.6” (600mm) D
- Dimensions (without grille): 20.9” (532mm) H X 17.3” (440mm) W X 22.5” (571mm) D
- Shipped Dimensions: 26.1” (662mm) H X 22.1” (562mm) W X 30” (762mm) D
- Weight (unboxed): 64.8lbs (29.4kg) with Grill
- Shipped Weight: 77.9lbs (35.3kg)
3. Driver Specs:
- All-new proprietary 12-inch high-excursion SVS 2000 Pro subwoofer driver with overhung motor
- Dual layer high purity copper voice coil provides maximum magnetics at extreme excursion while
reducing mass and improving driver efficiency. Built around a premium grade 2” polyimide impregnated fiberglass
former for maximum thermal conductivity. - Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to
drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible. - New premium powder coated basket, FEA optimized for maximum rigidity, tensile strength, and energy transference.
- All new 12-inch 1050 aluminum vented cone ensures a light, ridged, and neutral radiating surface.
- Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at
full excursion for exceptionally tight and fast output, even at reference volumes. - Extreme oversized low carbon vented 1008 steel U-yoke and top plate provide superior cooling and improved
magnetics for maximum performance and efficiency. - Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improve
magnetic linearity. - Dual balanced 24-strand silver plated Litz wire high temperature leads woven through the Nomex composite spider
provide a pristine electrical connection from the amplifier to the voice coil. - Nickle-plated high-tension spring terminals.
- Proprietary injection molded gasket and extreme-excursion surround maintains ideal pistonic motion for pinpoint
accuracy and control.
4. SVS Sledge-550D Amplifier Specs:
- Massively powerful Sledge 550-watt RMS Class-D design with 1,500+ watts of Peak Power
- High efficiency cool-running Class-D switching topology with massive 25 Amp 600 Volt MOSFET’s result in lower
EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output with pristine clarity
well beyond reference listening levels. - High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer
processor available in a home subwoofer. - Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation with three
parametric EQs for absolute best alignment with speakers and optimized performance in any room. - Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow custom
tuning for every room and system. - RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.

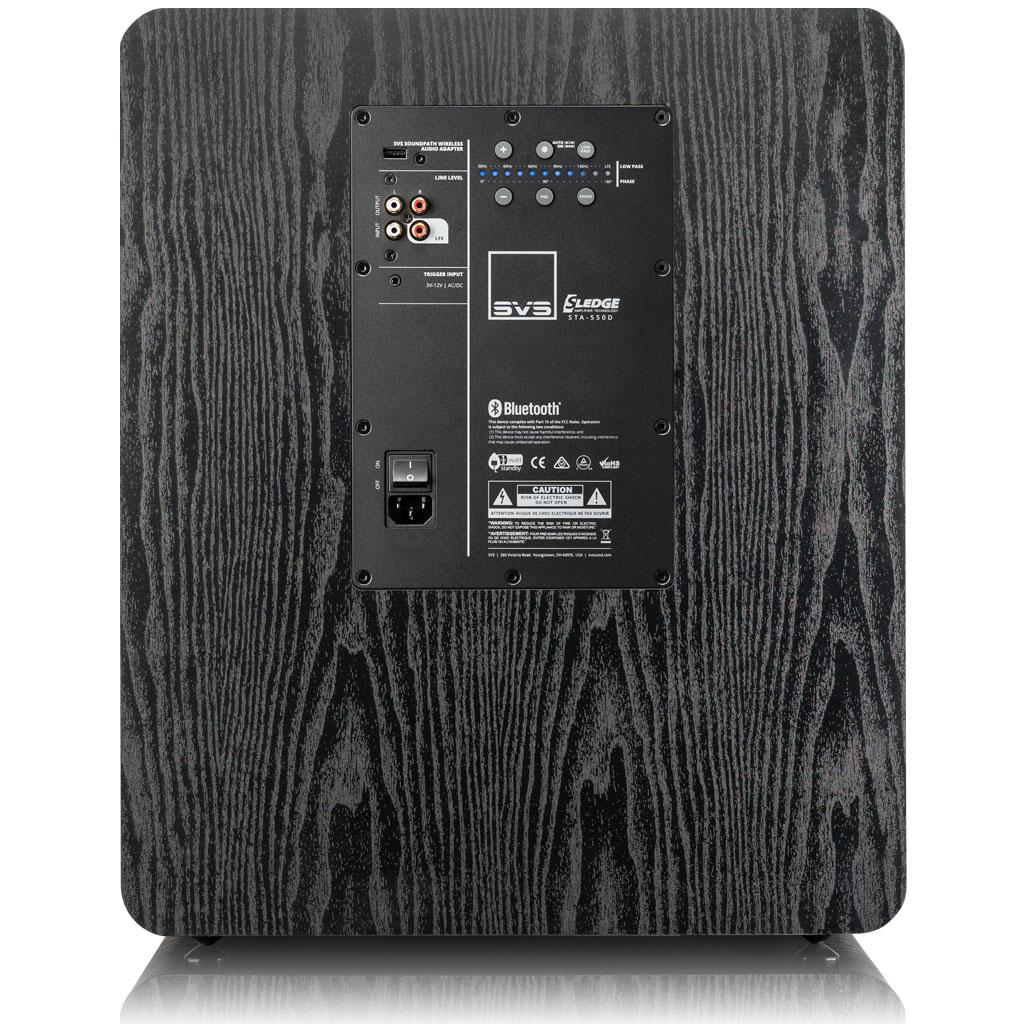

- All new rear panel Intelligent Control Interface (ICI) user interface with push-button controls.
- USB output for service and powering accessories like the SVS SoundPath Wireless Audio Adapter for wireless
subwoofer placement. - Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.
- Input impedance 16kohm (unbalanced RCA).
- Green 0.5-watt low standby power consumption.
- RoHS compliant, lead-free construction, world-wide safety certifications.
5. SVS App Specs:
- Bluetooth controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems.
- Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all
other bass management functions. - Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
- Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
- Easy-to-follow tutorial provides clear guidance for all functions.
6. Accessories:
- Protective non-resonant extra-thick ABS fabric mesh grill
- Iso-elastomer feet included
- Extra heavy-duty, high current 6-foot power cord
- Quick Start Guide
Weight | 35.3 kg |
---|---|
Dimensions | 76.2 × 56.2 × 66.2 cm |
Frequency Response | 16Hz to 290Hz +/-3dB (standard mode) |
Amplifier | Class D with Analog Preamp Stage |
Amplifier Power (Cont/Peak) | 550 W RMS / 1500+ W Peak |
Driver Components | 12” Long-Throw High Excursion Driver |
Enclosure Material | MDF |
Enclosure Type | Bass Reflex via Dual 3" Front-Firing Ports |
Inputs | Unbalanced stereo input/output |
Height | 20.9” (53.2cm) |
Width | 17.3” (44cm) |
Depth | 23.6” (60cm) |
Weight | 64.8lbs (29.4kg) with Grill |
Finishes | Black Ash |
