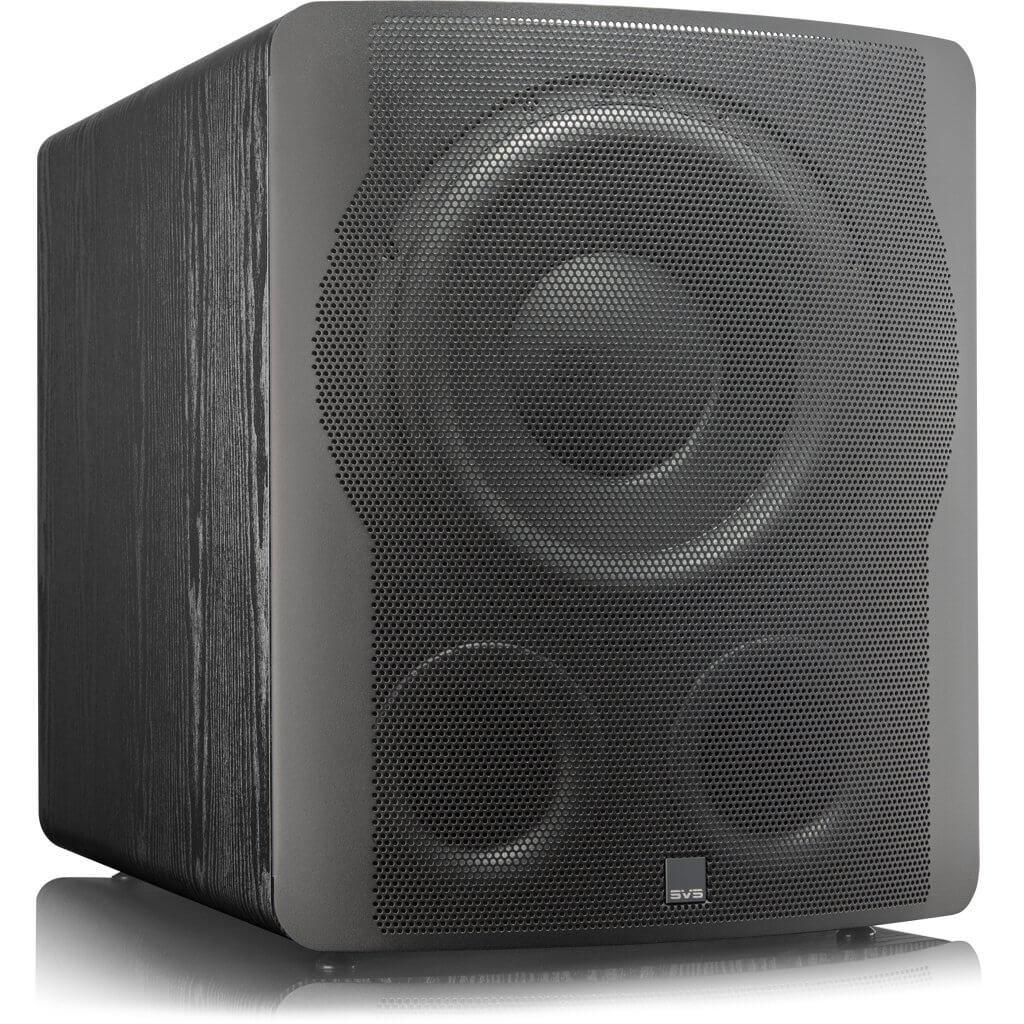

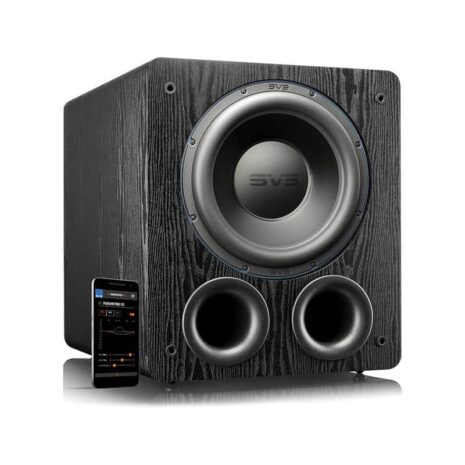

SVS PB-3000 Pro Subwoofer (Black Ash)
Earth-shaking output, subterranean low frequency extension, crisp speed in transients and pinpoint control, the PB-3000 delivers reference subwoofer performance at a breakthrough price. Features all-new, first-ever 13-inch high-excursion SVS driver and 800 watts RMS, 2,500+ watts peak power Sledge amplifier with fully discrete MOSFET output for crushing bass below the threshold of human hearing without sacrificing refinement
Features:
- 13″ high-excursion SVS driver
- Bass-Reflex via Exclusive Dual 3.5″ firing Ports
- Class D Amplifier with 800+W RMS / 2500+W Peak
- Features the SVS Subwoofer DSP smartphone app
- Dimensions: 21.9” (H) 18.3” (W) 26” (D)
SVS PB-3000 Pro Subwoofer
Crushing output and extreme low frequency extension down to 16Hz without sacrificing accuracy and control,
the PB-3000 is a standard bearer for bass performance at any price. All new 13-inch high-excursion SVS driver,
sophisticated 800 watts RMS, 2,500+ watts peak Sledge STA-800D2 DSP amplifier and first ever dual port SVS
cabinet design ensure effortless output at the deepest octaves without a hint of distortion.
PB-3000 features two port tuning modes, each with individual response curves to achieve the most accurate
in-room frequency response possible whether in sealed or standard mode. With massive output that extends
far below the threshold of human hearing, where it can only be felt, the PB-3000 unleashes the full impact
of every movie, bassline and low frequency effect without ever compromising.
SVS PB-3000 Pro Subwoofer Specifications:
Summary:
FREQUENCY RESPONSE : 16-260 Hz +/- 3 dB (standard mode), 18-260 Hz +/- 3 dB (sealed mode)
MAXIMUM ACOUSTIC OUTPUT :
AMPLIFIER Type : Class D with Analog Preamp Stage
AMPLIFIER POWER (CONT/PEAK) : 800W RMS / 2500+W Peak
WOOFER : 13” Long-Throw Driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Bass-Reflex via Dual 3.5″ front-firing ports
INPUTS : Stereo RCA/LFE
HEIGHT : 21.9” (557mm)
WIDTH : 18.3” (465mm)
DEPTH : 26” (660mm)
WEIGHT : 82.2 lbs. (37.3 kg)
FINISH : Black Ash
1. Frequency Response / Acoustic Data:
- 16-260 Hz +/- 3 dB (standard mode)
- 18-260 Hz +/- 3 dB (sealed mode)
- Roll-off slope specifically optimized to take maximum advantage of available room gain
- 2-meter ground plane away from reflective structures (quasi-anechoic)
2. Subwoofer Specs:
- Premium Black Ash
- Protective non-resonant steel mesh grille
- Front-firing 13 inch high-excursion SVS driver
- Rear-mounted amplifier with Intelligent Control Interface (ICI)
- Dual 3.5-inch ports
- Screw-in rubber feet
- Robust Medium Density Fiberboard (MDF) cabinet construction
- Dimensions (w/ grille): 21.9” (557mm) H X 18.3” (465mm) W X 26” (660mm) D
- Dimensions (without grille): 21.9” (557mm) H X 18.3” (465mm) W X 23.5” (596mm) D
- Shipped Dimensions: 31.3” (795mm) H 23.1” (587mm) W X 26.5” (674mm) D
- Weight (unboxed): 82.2 lbs. (37.3 kg)
- Shipped Weight: 97 lbs. (44 kg)
3. Driver Specs:
- All New Proprietary 13” high-excursion SVS 3000 Series subwoofer driver
- SVS first flat edge wound split-wind voice coil provides maximum magnetics at high excursion
while reducing mass and improving overall driver efficiency. Built around a premium grade 2” polyimide
impregnated fiberglass former for maximum thermal conductivity. - Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force
to drive the highest levels of excursion, SPL, and start/go power for the deepest and most authoritative
bass possible. - All-new High density FEA-optimized cast aluminum basket provides unequaled levels of rigidity,
tensile strength, and energy transference available from a subwoofer. - Four balanced 24-strand silver plated Litz wire high temperature leads woven through the
6.5” 2-ply Nomex composite spider provide a pristine electrical connection from the amplifier to the
voice coil. - All new 13” 1050 Aluminum vented cone ensures a light, rigid, and neutral radiating surface.
- Precision machined motor elements and narrow tolerance suspension parts produce unmatched
linearity at full excursion for exceptionally tight and fast output, even at reference volumes. - Extreme oversized low carbon vented 1008 steel U-yoke and top plate provide superior cooling
and improved magnetics for maximum performance and efficiency. - 6063 Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity,
and improve magnetic linearity. - Nickel-plated high-tension spring terminals.
- Proprietary injection molded gasket and SBR extreme-excursion surround maintains ideal pistonic
motion for pinpoint accuracy and control.
4. Amplifier Specs:
- Massively powerful Sledge 800-watt continuous Class D design with 2,500+ watts of Peak Power.
- High efficiency cool-running Class-D switching topology with massive 25 Amp 600 Volt MOSFET’s
result in lower EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output
with pristine clarity well beyond reference listening levels. - High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is the most advanced
subwoofer processor available for perfect audio reproduction. - Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation with
three parametric EQs for absolute best alignment with speakers and optimized performance in any room. - Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow
custom tuning for every room and system. - RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.
- All new rear panel Intelligent Control Interfacel (ICI) user interface with bright back-lit controls.
- Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.
- Input impedance 16kohm (unbalanced RCA).
- Green 0.5-watt low standby power consumption.
- RoHS compliant, lead-free construction, world-wide safety certifications.
5. SVS App Specs:
- The most powerful and flexible Bluetooth controlled subwoofer DSP app, works with both iOS and Android
operating systems. - Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and
all other bass management functions. - Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
- Single tap adjustment for controlling variable port tuning with standard and sealed modes.
- Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
- Easy-to-follow tutorial provides clear guidance for all functions.
6. Included Accessories:
- Protective non-resonant steel mesh grille
- Iso-elastomer feet included
- Extra heavy-duty, high current 6′ power cord
- Quick Start Guide
| Weight | 44 kg |
|---|---|
| Dimensions | 67.4 × 58.7 × 79.5 cm |
| Frequency Response | 16-260 Hz +/- 3 dB (standard mode) |
| Amplifier | Class D with Analog Preamp Stage |
| Amplifier Power (Cont/Peak) | 800 W RMS / 2500+ W Peak |
| Driver Components | 13” Long-Throw High Excursion Driver |
| Enclosure Material | MDF |
| Enclosure Type | Bass Reflex via Dual 3.5" Front-Firing Ports |
| Inputs | Unbalanced stereo input/output |
| Height | 21.9” (55.7cm) |
| Width | 18.3” (465mm) |
| Depth | 26” (660mm) |
| Weight | 82.2 lbs. (37.3 kg) |
| Finishes | Black Ash |
