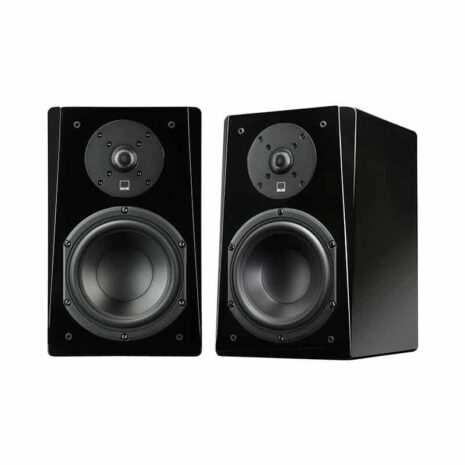

SVS Prime Bookshelf Speakers (Piano Black)
Equally well-suited for home theater and 2-channel stereo systems, SVS Prime Bookshelf speakers perform well above their price with stunning clarity, crisp dynamics, and full sounding bass.
Features:
- 1” Aluminum Dome Tweeter with FEA- Optimized diffuser
- One 6.5″ Poly Woofer
- 1.7” wide-flared rear-firing port
- Single set of 5-way binding post
- Cloth grille with pin/cup retention system
- Overall Dimensions: 13.3″ (H) X 8″ (W) X 10.3″ (D) (includes grille and bumper feet)
SVS Prime Bookshelf Speakers
The Prime Bookshelf speakers are sonic overachievers on all levels. Stunningly dynamic, pinpoint accurate and utterly transparent, they deftly serve as reference monitor loudspeakers in a two-channel system, or as high performance front, center, or side/rear surround speakers in a multi-channel home theater.
Specification:
FREQUENCY RESPONSE : 48 Hz-25 kHz (±3 dB)
SENSITIVITY : 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-150 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Tweeter to Woofer – 2300hz
HIGH FREQUENCY DRIVER : 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : one 6.5″ poly woofer
MIDRANGE FREQUENCY DRIVER : N/A
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : 1.7” wide-flared rear-firing port
INPUTS : Single set of 5 way binding posts
HEIGHT : 13.3″
WIDTH : 8″
DEPTH : 10.3″
PRODUCT WEIGHT LBS : 15.5 lb per Speaker
FINISHES : Piano Gloss Black
SVS Prime Bookshelf Speakers Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 48 Hz-25 kHz (±3 dB)
- Nominal impedance: 8 ohms.
- Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-150 watts.
2. Speaker Specs:
- Bookshelf Loudspeaker
- Black ash and piano gloss black finish options
- Single set of 5-way binding posts
- 1.7” wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Cabinet Dimensions: 13.2″ (H) X 8″ (W) X 9.4″ (D)
- Overall Dimensions: 13.3″ (H) X 8″ (W) X 10.3″ (D) (includes grille and bumper feet)
- Shipped Dimensions-2 Pack: 17.6″ (H) X 22.4″ (W) X 14.4” (D)
- Weight: 15.5 pounds
- Shipped Weight-2 Pack: 34.7 pounds
3. Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
6.5” Woofers:
- Long stroke motor and suspension for high output
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
4. Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Crossover network delivers outstanding phase coherency and time domain behavior
- Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes)
Cabinet:
- Acoustically transparent and FEA optimized grilles minimize diffraction
- FEA-optimized cabinet and bracing eliminates resonances
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
| Weight | 15.73 kg |
|---|---|
| Dimensions | 36.57 × 56.89 × 44.7 cm |
| Frequency Response | 48 Hz-25 kHz (±3 dB) |
| Sensitivity | 87 dB (2.83V @ 1 meter full-space, 300-3kHz) |
| Power Handeling (Cont/Peak) | Recommended Amplifier 20-150W |
| Nominal Impedance | 8 ohms compatible |
| Crossover Frequency | Tweeter-to-Midrange crossover: 2.3kHz (12 dB/octave slopes) |
| High Frequency Driver | 1” Aluminum Dome Tweeter with FEA- Optimized diffuser |
| Midrange Driver | N/A |
| Low Frequency Driver | One 6.5" Poly Woofer |
| Enclosure Material | MDF |
| Enclosure Type | Bass-Reflex via wide flared rear-firing port |
| Inputs | Single set of 5-way binding posts |
| Height | 13.3" |
| Width | 8" |
| Depth | 10.3 |
| Weight | 15.5 lbs per speaker |
| color | Piano Black |
| Brand | SVS |
