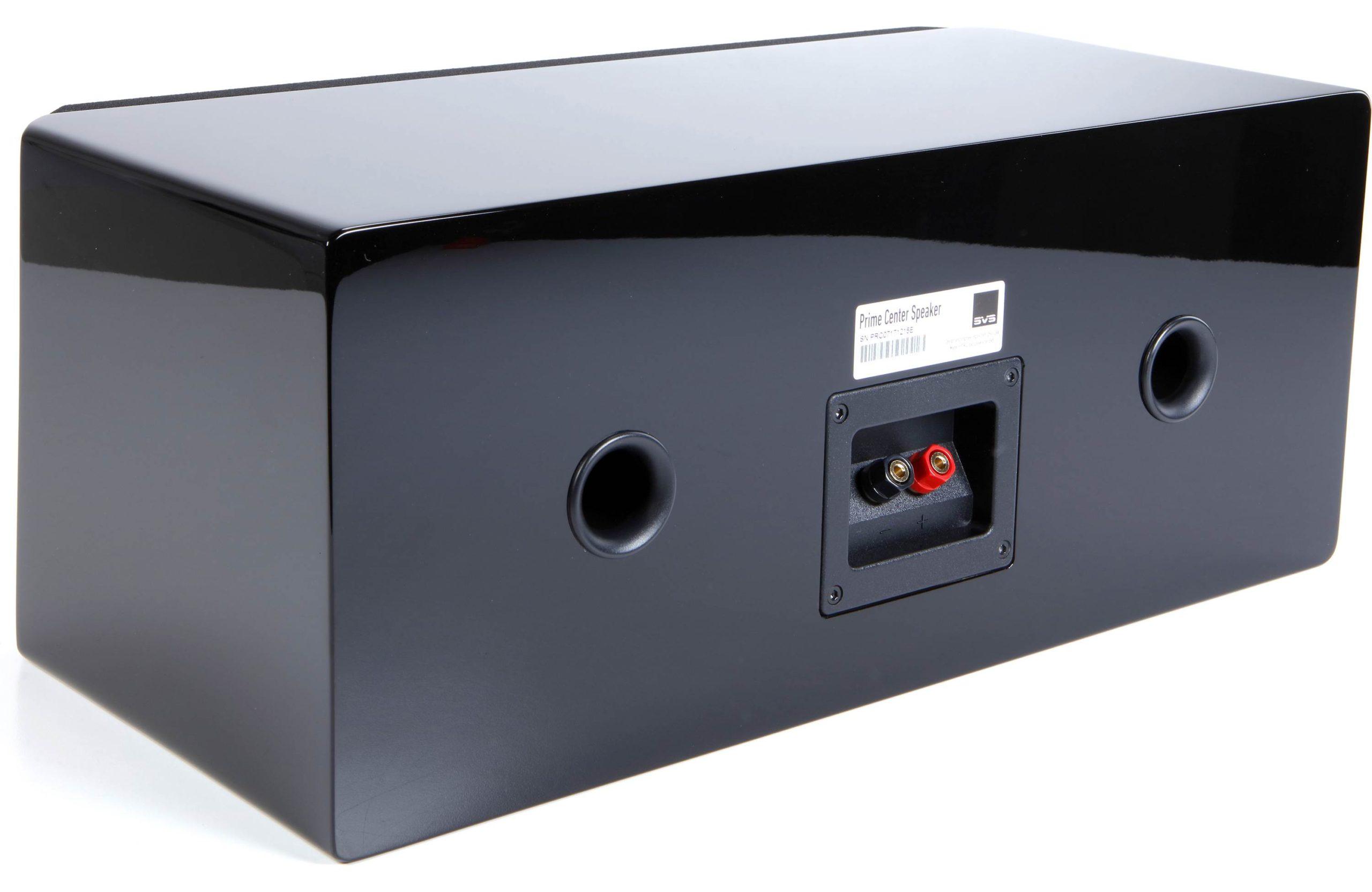

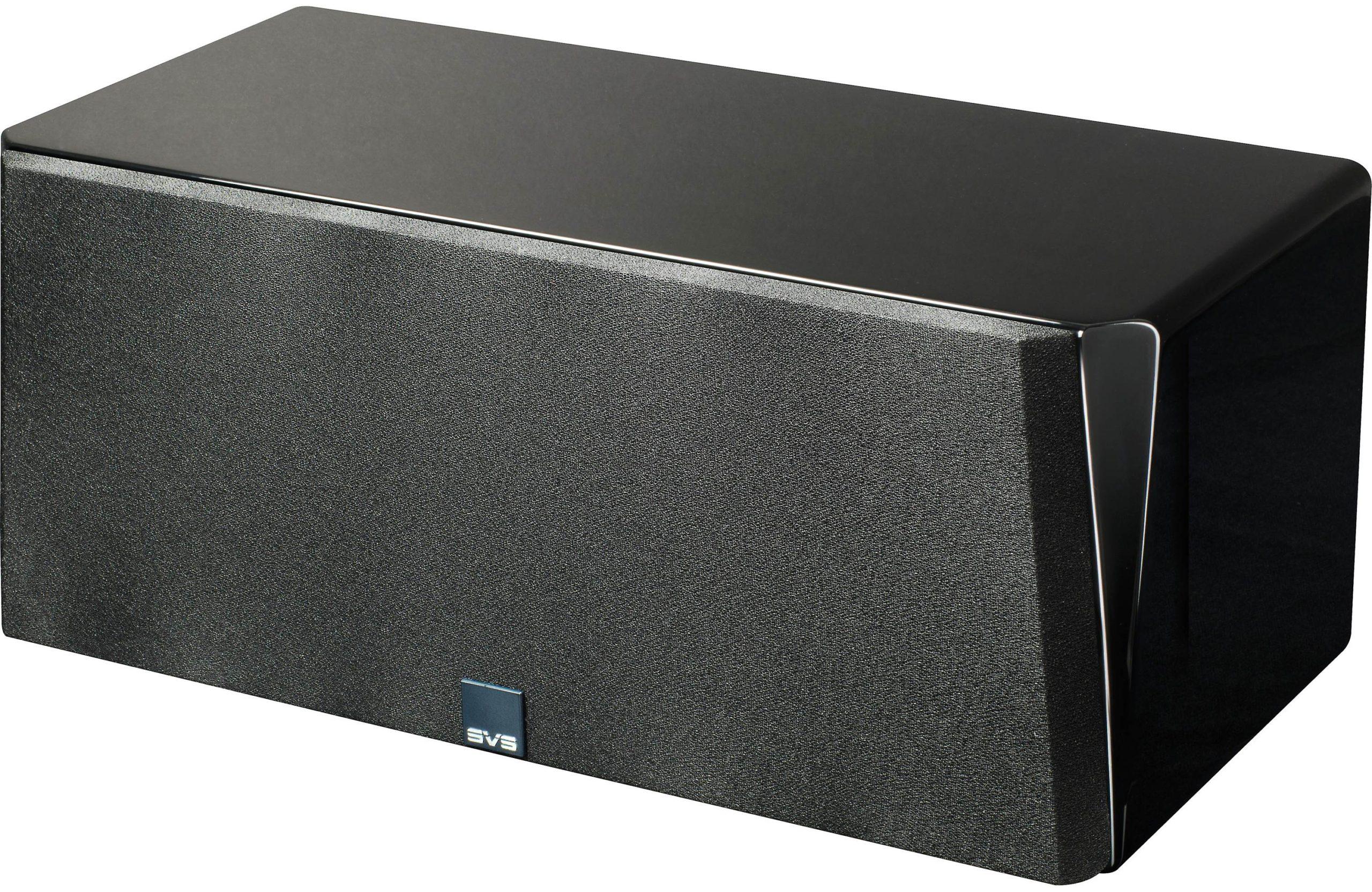

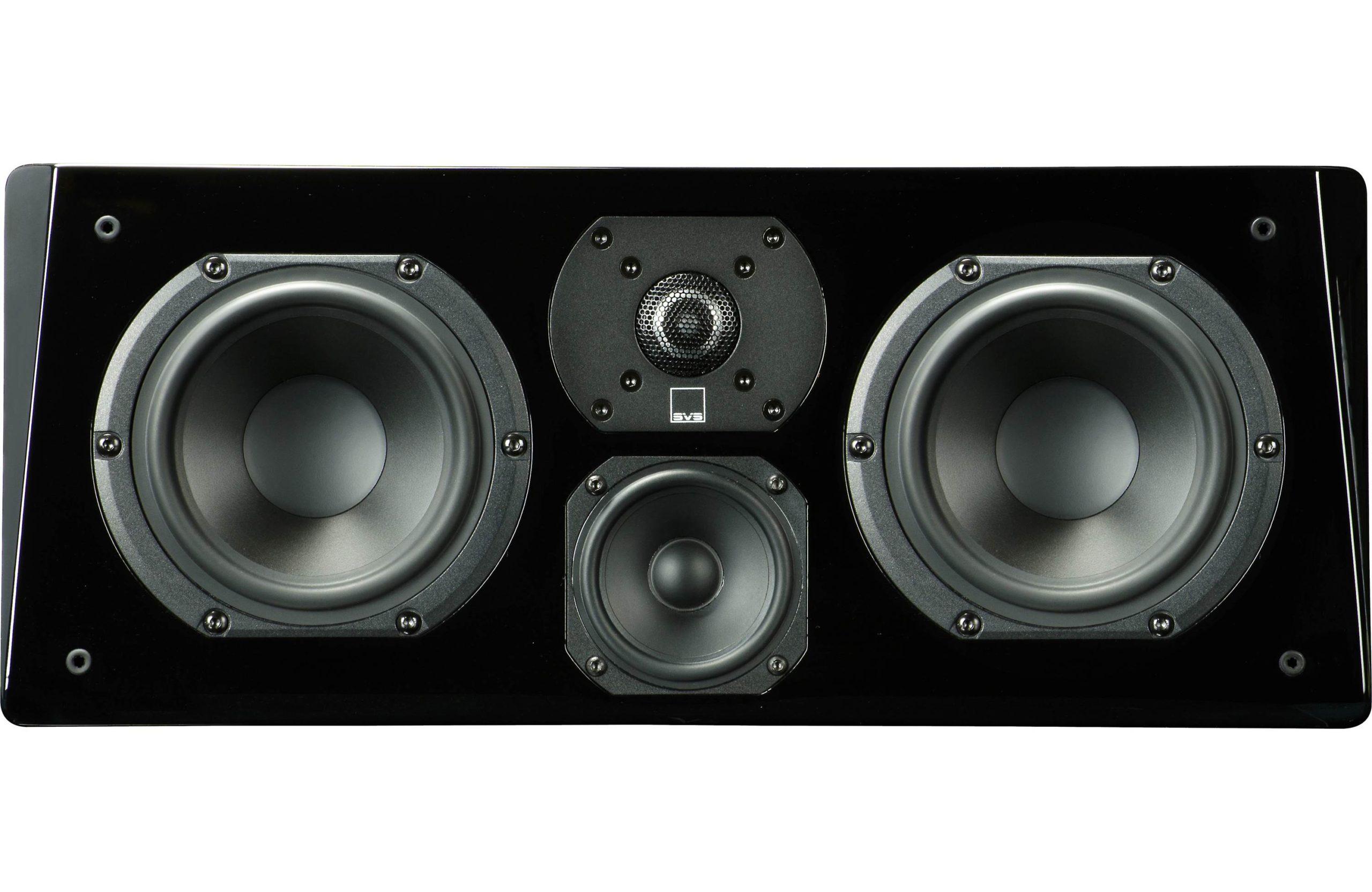

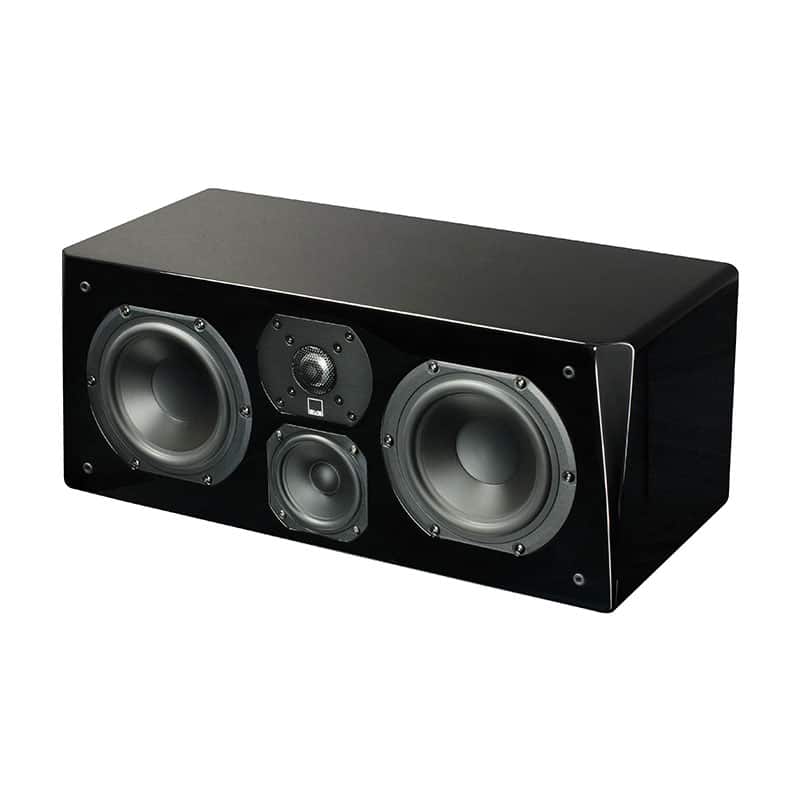

SVS Prime Center Speaker (Piano Black)
True 3-way center channel delivers crystal clear and natural sounding dialogue and vocals with an expansive soundstage, stunning dynamics and excellent dispersion for a convincing home theater surround sound experience.
Features:
- 1” Aluminum Dome Tweeter with FEA- Optimized diffuser
- Dual 5.25″ Poly Woofers
- Dual 1” wide-flared rear-firing port
- Single set of 5-way binding post
- Cloth grille with pin/cup retention system
- Overall Dimensions: 7.7″ (H) X 18.6″ (W) X 9.2″ (D) (includes grille and bumper feet)
SVS Prime Center Speaker
It’s rare, if not impossible to find a true 3-way center channel speaker at even close to what the Prime Center costs. Leveraging design elements and technology from the SVS Ultra Center, the Prime Center speaker features premium drivers and crossover components and sophisticated engineering that put it in a class by itself when compared to other center speakers in its class.
Center channel speakers are often considered the most underrated speakers in a home theater because they handle so much of the content yet are designed as afterthoughts by many audio brands. The SVS Prime Center accepts no compromises and anchors the front soundstage of a 5.1 home theater surround sound system or other set-ups with precision and power that complements even the most high-end multi-channel systems.
Specification:
FREQUENCY RESPONSE : 48 Hz-25 kHz (±3 dB)
SENSITIVITY : 86 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-200 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Tweeter to midrange – 2400 hz, woofer to midrange 350hz
HIGH FREQUENCY DRIVER : 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : Dual 5.25″ poly woofers
MIDRANGE FREQUENCY DRIVER : 3.5″ midrange driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Dual 1” wide-flared rear-firing ports
INPUTS : Single set of 5 way binding posts
HEIGHT : 7.7″
WIDTH : 18.6″
DEPTH : 8.6″
PRODUCT WEIGHT LBS : 20.2 lb
FINISHES : Piano Gloss Black
SVS Prime Center Speaker Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 48 Hz-25 kHz (±3 dB)
- Nominal impedance: 8 ohms.
- Sensitivity: 86 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-200 watts.
2. Speaker Specs:
- Black ash and piano gloss black finish options
- Single set of 5-way binding posts
- Dual 1” wide-flared rear-firing ports
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Center Channel Loudspeaker
- Cabinet Dimensions: 7.6″ (H) X 18.6″ (W) X 8.6″ (D)
- Overall Dimensions: 7.7″ (H) X 18.6″ (W) X 9.2″ (D) (includes grille and bumper feet)
- Shipped Dimensions: Shipped Dimensions: 12.2″ (H) X 23″ (W) X 13.4″ (D)
- Weight Unboxed: 20.2 pounds
- Shipped Weight: 23.3 pounds
3.Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
3.5” Midrange Driver:
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
Dual 5.25” Woofers:
- Long stroke motor and suspension for high output
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
4. Crossover & Cabinet Specs:
Crossover:
- 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes)
- Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes)
Cabinet:
- Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
- Separate sealed midrange enclosure shifts standing waves beyond the driver pass band, improving sound quality
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved on-axis high frequency response
- FEA-optimized cabinet and bracing eliminates resonances
| Weight | 10.56 kg |
|---|---|
| Dimensions | 34.036 × 58.42 × 30.98 cm |
| Frequency Response | 48 Hz-25 kHz (±3 dB) |
| Sensitivity | 86 dB (2.83V @ 1 meter full-space, 300-3kHz) |
| Power Handeling (Cont/Peak) | Recommended Amplifier 20-200W |
| Nominal Impedance | 8 ohms compatible |
| Crossover Frequency | Midrange-to-tweeter crossover: 2.4 kHz (12 dB/octave slopes) Woofer-to-midrange crossover: 350 Hz (12 dB/octave slopes) |
| High Frequency Driver | 1” Aluminum Dome Tweeter with FEA- Optimized diffuser |
| Midrange Driver | 3.5” Midrange Driver |
| Low Frequency Driver | Dual 5.25" poly woofers |
| Enclosure Material | MDF |
| Enclosure Type | Dual 1” wide-flared rear-firing ports |
| Inputs | Single set of 5-way binding posts |
| Height | 7.7 |
| Width | 18.6 |
| Depth | 9.2 |
| Weight | 20.2 lbs |
| color | Piano Black |
| Brand | SVS |
