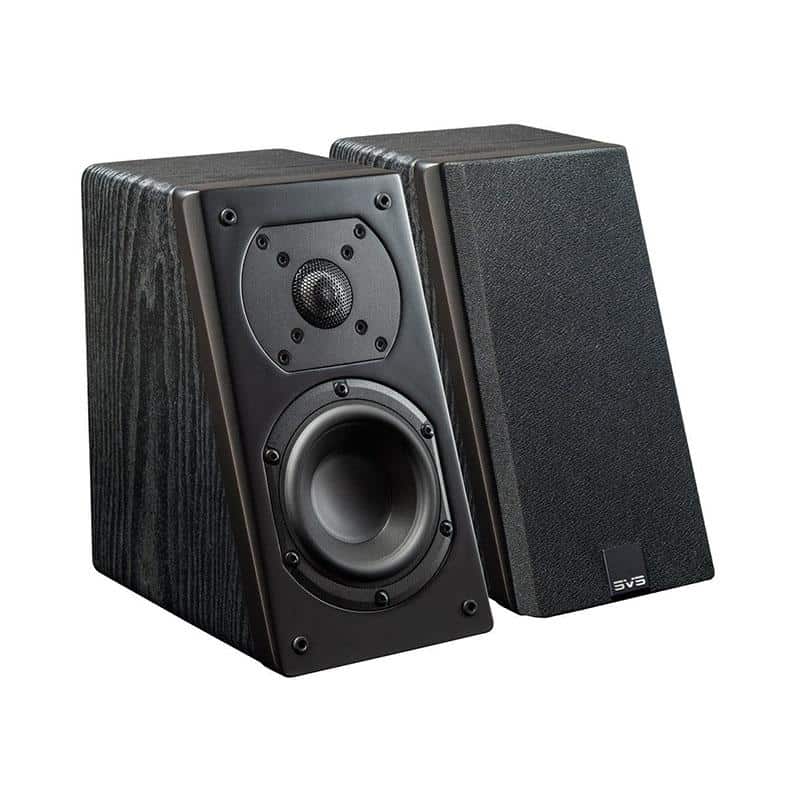

SVS Prime Elevation Speakers (Black Ash)
The world’s most versatile high-performance home theater speaker, Prime Elevation is an uncompromised height effects speaker for Dolby Atmos®, DTS:X® and Auro-3D® and an outstanding solution for side surrounds, rear surrounds, or even the front stage LCR speakers. Easy to mount anywhere on the wall or ceiling, Prime Elevation delivers outstanding performance even when ideal speaker placement isn’t possible.
Features:
- 1” Aluminum Dome Tweeter with FEA- Optimized diffuser
- 4.5″ Midrange driver
- 1” wide-flared rear-firing port
- Single set of 5-way binding post
- Cloth grille with pin/cup retention system
- Overall Dimensions: 9.4″ (H) X 5.44″ (W) X 8.33″ (D) (includes grille, binding posts and bumper feet)
SVS Prime Elevation Speakers
The world’s most versatile high-performance home theater speaker, Prime Elevation is an uncompromised height effects speaker for Dolby Atmos®, DTS:X® and Auro-3D® and an outstanding solution for side surrounds, rear surrounds, or even the front stage LCR speakers. Easy to mount anywhere on the wall or ceiling, Prime Elevation delivers outstanding performance even when ideal speaker placement isn’t possible.
Specification:
FREQUENCY RESPONSE : 55 Hz-25 kHz (±3 dB)
SENSITIVITY : 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-150 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Tweeter to woofer 2500hz
HIGH FREQUENCY DRIVER : 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : N/A
MIDRANGE FREQUENCY DRIVER : 4.5″ midrange driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : 1” wide-flared rear-firing port
INPUTS : Single set of 5 way binding posts
HEIGHT : 9.4″
WIDTH : 5.44″
DEPTH : 8.33″
PRODUCT WEIGHT LBS : 20 lb
FINISHES : Black Ash
SVS Prime Elevation Speakers Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 55 Hz-25 kHz (±3 dB)
- Nominal impedance: 8 ohms.
- Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-150 watts.
2. Speaker Specs:
- Black Ash, Piano Gloss Black and Piano Gloss White finish options
- Single set of 5-way binding posts
- 1” wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Magnetic SVS Logo which can be removed and oriented according to speaker application.
- Elastomer stick-on bumper feet (adds 3mm to height)
- Unique SVS Multi-Angle Wall Bracket (patent pending) system that allows speaker to be wall mounted in any of four positions
- 1/4″ brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems.
- Cabinet Dimensions: 9.25″ (H) X 5.44″ (W) X 7.88″ (D)
- Overall Dimensions: 9.4″ (H) X 5.44″ (W) X 8.33″ (D) (includes grille, binding posts and bumper feet)
- Overall Dimensions: 9.25″ (H) X 5.44″ (W) X 8.98″ (D) (includes grille and SVS Multi-Angle Wall Bracket)
- Shipped Dimensions: 9.30″ (H) X 12″ (W) X 18″ (D)
- Weight Unboxed: 7.8 pounds
- Shipped Weight: 20 pounds
3. Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
4.5” Midrange Driver:
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
4. Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Crossover network delivers outstanding phase coherency and time domain behavior
- Tweeter-to-woofer crossover: 2.5 kHz (12 dB/octave slopes)
Cabinet:
- Acoustically transparent and FEA optimized grilles minimize diffraction
- Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improved off-axis high frequency response
- FEA-optimized cabinet and extra thick MDF bracing eliminate resonances
- Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
| Weight | 9.07 kg |
|---|---|
| Dimensions | 22 × 30.48 × 23.63 cm |
| Frequency Response | 55 Hz-25 kHz (±3 dB) |
| Sensitivity | 87 dB (2.83V @ 1 meter full-space, 300-3kHz) |
| Power Handeling (Cont/Peak) | Recommended Amplifier 20-150W |
| Nominal Impedance | 8 ohms compatible |
| Crossover Frequency | Tweeter-to-woofer crossover: 2.5 kHz (12 dB/octave slopes) |
| High Frequency Driver | 1” Aluminum Dome Tweeter with FEA- Optimized diffuser |
| Midrange Driver | 4.5” Midrange Driver |
| Low Frequency Driver | N/A |
| Enclosure Material | MDF |
| Enclosure Type | 1” wide-flared rear-firing ports |
| Inputs | Single set of 5-way binding posts |
| Height | 9.4" |
| Width | 5.44" |
| Depth | 8.98" |
| Weight | 20 lbs |
| color | Black Ash, Piano Black |
| Brand | SVS |
