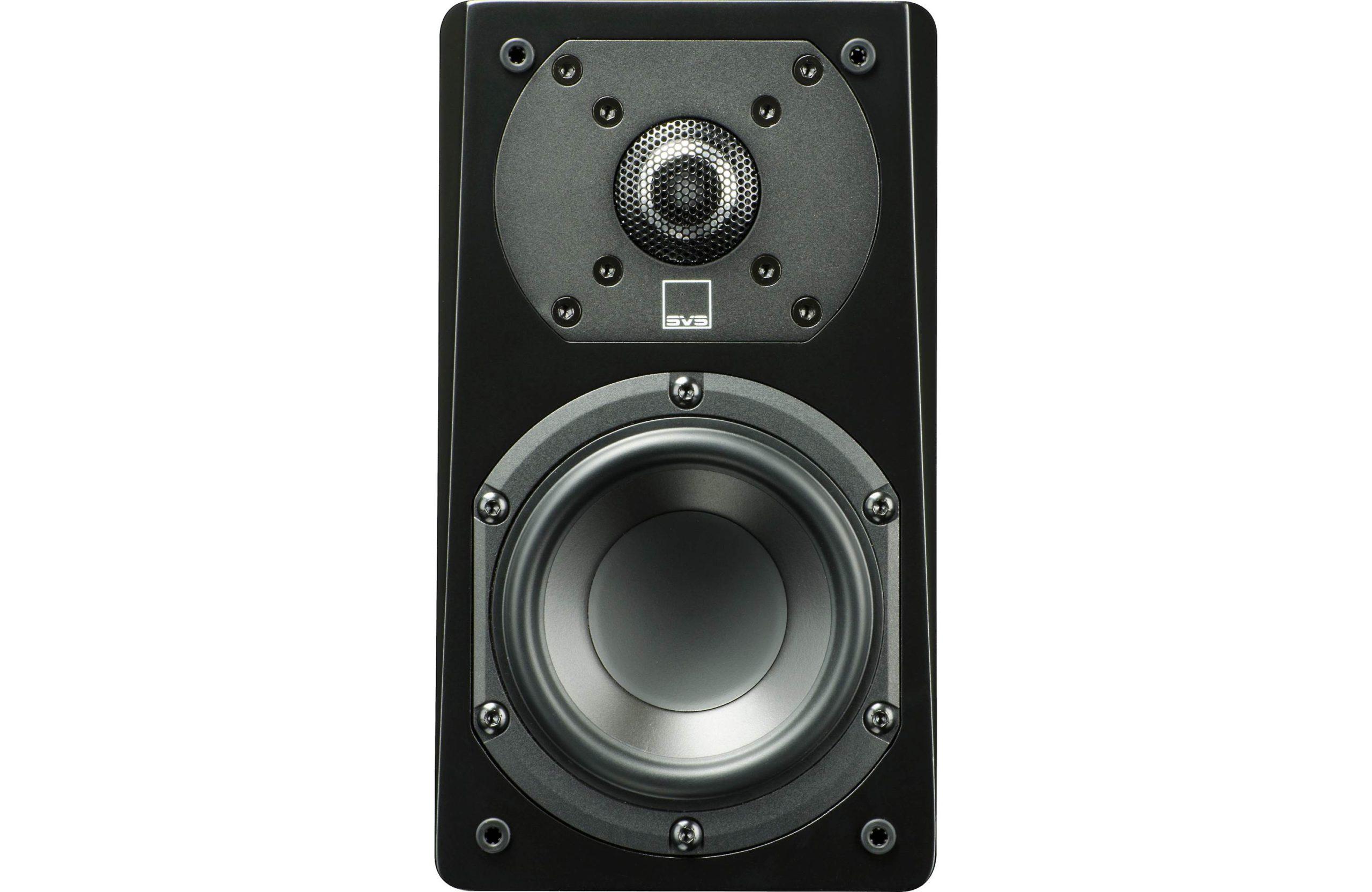

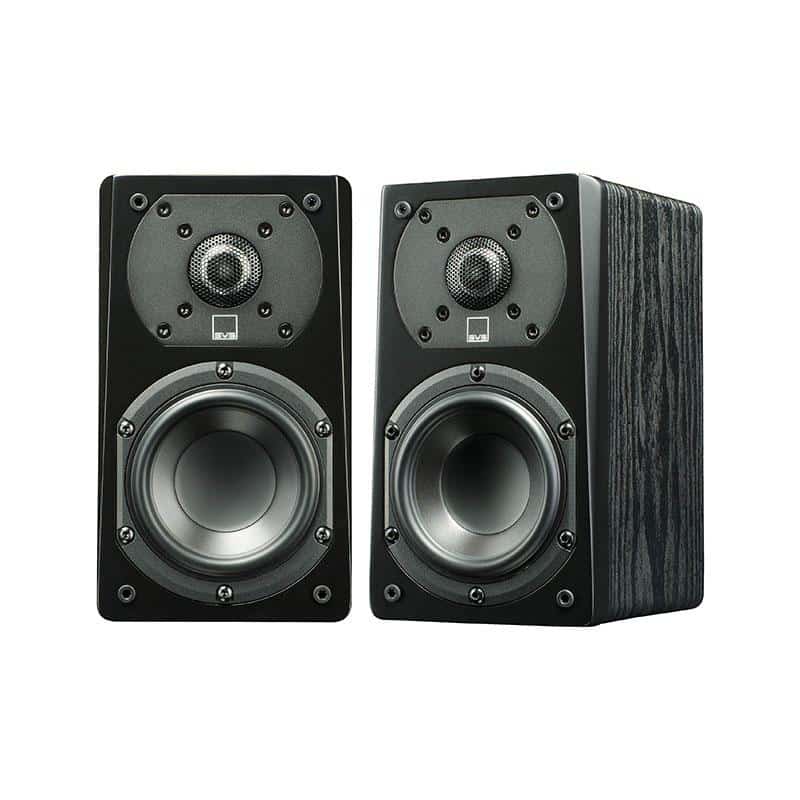

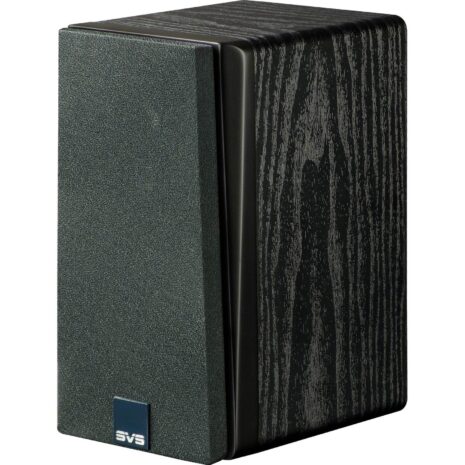

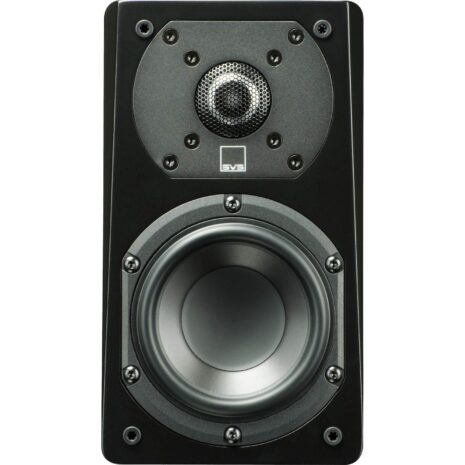

SVS Prime Satellite Speakers (Black Ash)
The SVS Prime Satellite speakers redefine performance in the small speaker category with massive output and incredible refinement, all from a lifestyle-friendly cabinet. Compact and easily adaptable, this versatile home theater speaker can serve as front, center, surround or height effect loudspeakers with astonishing detail and output.
Features:
- 1” Aluminum Dome Tweeter with FEA- Optimized diffuser
- One 4.5″ Poly Woofer
- 1” wide-flared rear-firing port
- Single set of 5-way binding post
- Cloth grille with pin/cup retention system
- Overall Dimensions: 8.85″ (H) X 4.9″ (W) X 6.3″ (D) (includes grille and bumper feet)
SVS Prime Satellite Speakers
From the moment you feel the heft of the Prime Satellite speakers, you understand they’re not the typical compact satellite speaker designed primarily for lifestyle or visual appeal. The Prime Satellite is a bona fide high performance loudspeaker that deftly plays any role in a home theater or audio system, and shatters expectations while doing it.
No satellite speakers have ever offered the level of rigorous design, high-end components and precise build quality in a such a super compact cabinet. The Prime Satellite conveys stunning dynamic impact and convincing detail and refinement well beyond what’s expected from such a small speaker.
Specification:
FREQUENCY RESPONSE : 69 Hz-25 kHz (±3 dB)
SENSITIVITY : 85 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-150 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Tweeter to Woofer – 2300hz
HIGH FREQUENCY DRIVER : 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : one 4.5″ poly woofer
MIDRANGE FREQUENCY DRIVER : N/A
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : 1” wide-flared rear-firing port
INPUTS : Single set of 5 way binding posts
HEIGHT : 8.85″
WIDTH : 4.9″
DEPTH : 6.3″
PRODUCT WEIGHT LBS : 6.5 lb per Speaker
FINISHES : Black Ash
SVS Prime Satellite Speakers Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 69 Hz-25 kHz (±3 dB)
- Nominal impedance: 8 ohms.
- Sensitivity: 85 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-150 watts.
2. Speaker Specs:
- Satellite Loudspeaker
- Premium Black Ash, Piano Gloss Black, and Piano Gloss White finish options
- Single set of 5-way binding posts
- 1” wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Keyway bracket for easy and convenient wall mounting (includes extra bumper pads for wall stand-off)
- Cabinet Dimensions: 8.75″ (H) X 4.9″ (W) X 6″ (D)
- Overall Dimensions: 8.85″ (H) X 4.9″ (W) X 6.3″ (D) (includes grille and bumper feet)
- Shipped Dimensions-2 Pack: 11.7″ (H) X 13.9″ (W) X 8.9″ (D)
- Shipped Dimensions 3 Pack: 11.7″ (H) X 20.3″ (W) X 8.9″ (D)
- Weight Unboxed: 6.5 pounds
- Shipped Weight 2 Pack: 14.7 pounds
- Shipped Weight 3 Pack: 21.7 pounds
3. Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome for exceptional transient response
4.5” Midrange Driver:
- Polypropylene cone for excellent stiffness/mass ratio and pistonic behavior
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast ABS-fiberglass composite basket ensures precision component alignment and excellent thermal transfer
- Vented voice coil former minimizes air compression artifacts
4. Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Crossover network delivers outstanding phase coherency and time domain behavior
- Tweeter-to-woofer crossover: 2.3 kHz (12 dB/octave slopes)
Weight | 6.66 kg |
---|---|
Dimensions | 13.9 × 4.9 × 11.7 cm |
Frequency Response | 69 Hz-25 kHz (±3 dB) |
Sensitivity | 85 dB (2.83V @ 1 meter full-space, 300-3kHz) |
Power Handeling (Cont/Peak) | Recommended Amplifier 20-150W |
Nominal Impedance | 8 ohms compatible |
Crossover Frequency | Tweeter-to-woofer crossover: 2.3kHz (12 dB/octave slopes) |
High Frequency Driver | 1” Aluminum Dome Tweeter with FEA- Optimized diffuser |
Midrange Driver | 4.5” Midrange Driver |
Low Frequency Driver | N/A |
Enclosure Material | MDF |
Enclosure Type | Bass-Reflex via wide flared rear-firing port (1” wide-flared rear-firing port) |
Inputs | Single set of 5-way binding posts |
Height | 8.85 |
Width | 4.9 |
Depth | 6.3 |
Weight | 6.5 lbs per speaker |
color | Black Ash |
Brand | SVS |
