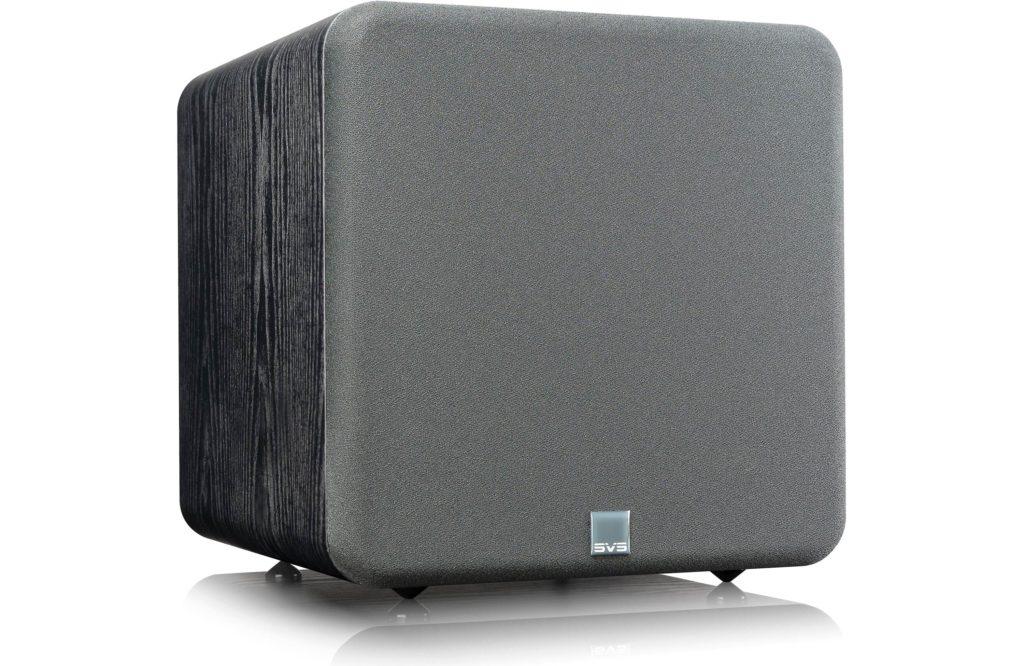

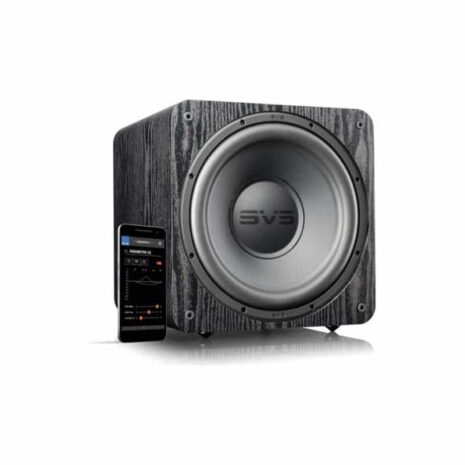

SVS SB-1000 Pro Subwoofer (Black Ash)
Breathtaking bass and stunning musicality from a compact 13-inch enclosure with state-of-the-art features that redefine subwoofer performance at their price and beyond.
Features:
- 12″ high-excursion SVS driver
- Sealed
- Class D Amplifier with 325+W RMS / 820+W Peak
- Features the SVS Subwoofer DSP smartphone app
- Iso-elastomer feet, non-resonant extra-thick ABS fabric mesh grille included
- Dimensions (w/ grille): 13.5” (H) X 13” (W) X 14.76” (D)
SVS SB-1000 Pro Subwoofer
Reference Subwoofer Performance Hits an All-Time Low.
Jaw-dropping deep bass extension down to 20Hz and massive output with stunning musicality that will
delight both audiophiles and home theater fans. Reference subwoofer performance has never been available
near this price from a cabinet of this size. SB-1000 Pro is a breakthrough subwoofer in every way.
Multiple innovations were deployed in the high-excursion 12-inch SVS SB-1000 Pro driver to ensure massive
subwoofer performance from a relatively compact cabinet. Advances to the cone, surround, voice coil,
and motor assembly maximize excursion for room-energizing SPLs at the lowest frequencies,
with precision and control.
SVS SB-1000 Pro Subwoofer Specifications:
Summary:
FREQUENCY RESPONSE : 20-270 Hz ±3 dB
MAXIMUM ACOUSTIC OUTPUT :
AMPLIFIER Type : Class D with Analog Preamp Stage
AMPLIFIER POWER (CONT/PEAK) : 325W RMS / 820+W Peak
WOOFER : 12” Long-Throw Driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Acoustic Suspension
INPUTS : Stereo RCA/LFE
HEIGHT : 18.9” (479mm)
WIDTH : 15” (380mm)
DEPTH : 19.2” (488mm)
WEIGHT : 42.5 lbs (19.3kg)
FINISH : Black Ash
1. Frequency Response / Acoustic Data:
- 20-270 Hz +/- 3 dB
- Expect 2-3 Hz deeper extension in small to mid-size rooms.
- 2-meter ground plane away from reflective structures (quasi-anechoic).
- Roll-off slope specifically optimized to take maximum advantage of available room gain.
2. Subwoofer Specs:
- Protective non-resonant extra-thick ABS fabric mesh grille
- Iso-elastomer feet included
- Extra heavy-duty, high current power cord 6′
- Quick Start Guide
- Unbalanced stereo input/output
- Speaker Level Stereo Input
- Auto/On and Trigger options through app, 3-12V AC/DC trigger
- RoHS compliant, lead-free construction, world-wide safety certifications
- Green 0.5-watt low standby power consumption
- Dimensions (w/ grille): 13.5” (342mm) H X 13” (330mm) W X 14.76” (375mm) D
- Dimensions (without grille): 13.5” (342mm) H X 13” (330mm) W X 13.9” (352mm) D
- Shipped Dimensions: 17.4” (455mm) H 17.4” (442mm) W X 18.4” (471mm) D
- Weight (unboxed): 26lbs (11.9kg) with Grille
- Shipped Weight: 31.1lbs (15kg)
3. Driver Specs:
- All-new proprietary 12-inch long-throw driver with high-precision tuned overhung motor configuration.
- 8.33lb (3.78kg) pound Woofer with 5.73lb (2.6kg) pounds motor
- 13.3mm Xmax, 26.9mm Xmech precision aligned excursion
- 1.5” diameter Voice Coil with high current 6-layer high-purity copper wire windings
- Premium high-purity copper voice coil winding design minimizes distortion and power compression
with maximum heat dissipation, linearity, and tuned magnetics for high excursion - Two-piece high grade oversized Y30 Ferrite magnet motor
- High Temperature 3003-H18 aluminum former/bobbing
- 6” composite cotton-poly extreme excursion linear spider
- Dual 24-strand copper-alloy high-temperature leads
- Proprietary injection molded gasket and NBR extreme-excursion surround
- Lightweight treated Fiber Composite cone for enhanced sensitivity and transient response
- Top plate assembly with low carbon 1010 steel for optimal magnetics
- Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling
and electromagnetics - 12” premium powder coated basket with FEA optimized analysis for maximum rigidity, tensile strength,
and energy transference - Oversized motor system for driving full excursion and industry best SPL, with pinpoint transient speed
- Precision machining for motor and narrow tolerance suspension parts ensure flawless linearity at
full range of excursion
4. SVS Sledge-325D Amplifier Specs:
- 325 watts RMS, 820+ watts peak power output Class D design
- 50Mhz Analog Devices Audio DSP, high resolution double precision 56bit filtering
- Wide input voltage bandwidth compliant for consumer and pro audio up to 4V line level input.
- High efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and
highest efficiency. - Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
- SVS BLE control app for iOS and Android contains 3 complete name-able and customizable User presets,
supports IOS (iphone5 or newer or Android (4.42 or newer), 3 PEQ’s per preset, adjustable low pass, phase, polarity,
room gain compensation, and control for best alignment with speakers. - Customer EQ and DSP limiter settings specifically for the 1000 Pro
- Input impedance 16kohm (unbalance RCA)
- Input impedance 20kohm (speaker level)
- New Intelligent Feature control (IFC) user interface on the amplifier with bright blue 11 LED bar display
and easy push-button controls.
5. SVS App Specs:
- Bluetooth controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems.
- Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all
other bass management functions. - Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
- Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
- Easy-to-follow tutorial provides clear guidance for all functions.
6. Accessories:
- Protective non-resonant extra-thick ABS fabric mesh grille
- Iso-elastomer feet included
- Extra heavy-duty, high current 6-foot power cord
- Quick Start Guide
| Weight | 15 kg |
|---|---|
| Dimensions | 47.1 × 44.2 × 45.5 cm |
| Frequency Response | 20-270 Hz +/- 3 dB |
| Amplifier | Class D with Analog Preamp Stage |
| Amplifier Power (Cont/Peak) | 325 W RMS / 850+ W Peak |
| Driver Components | 12” Long-Throw High Excursion Driver |
| Enclosure Material | MDF |
| Enclosure Type | Acoustic Suspension (Sealed) |
| Inputs | Unbalanced stereo input/output |
| Height | 13.5” (34.2cm) |
| Width | 13” (33 cm) |
| Depth | 14.76” (37.5 cm) |
| Weight | 26lbs (11.9kg) with Grille |
| Finishes | Black Ash |
