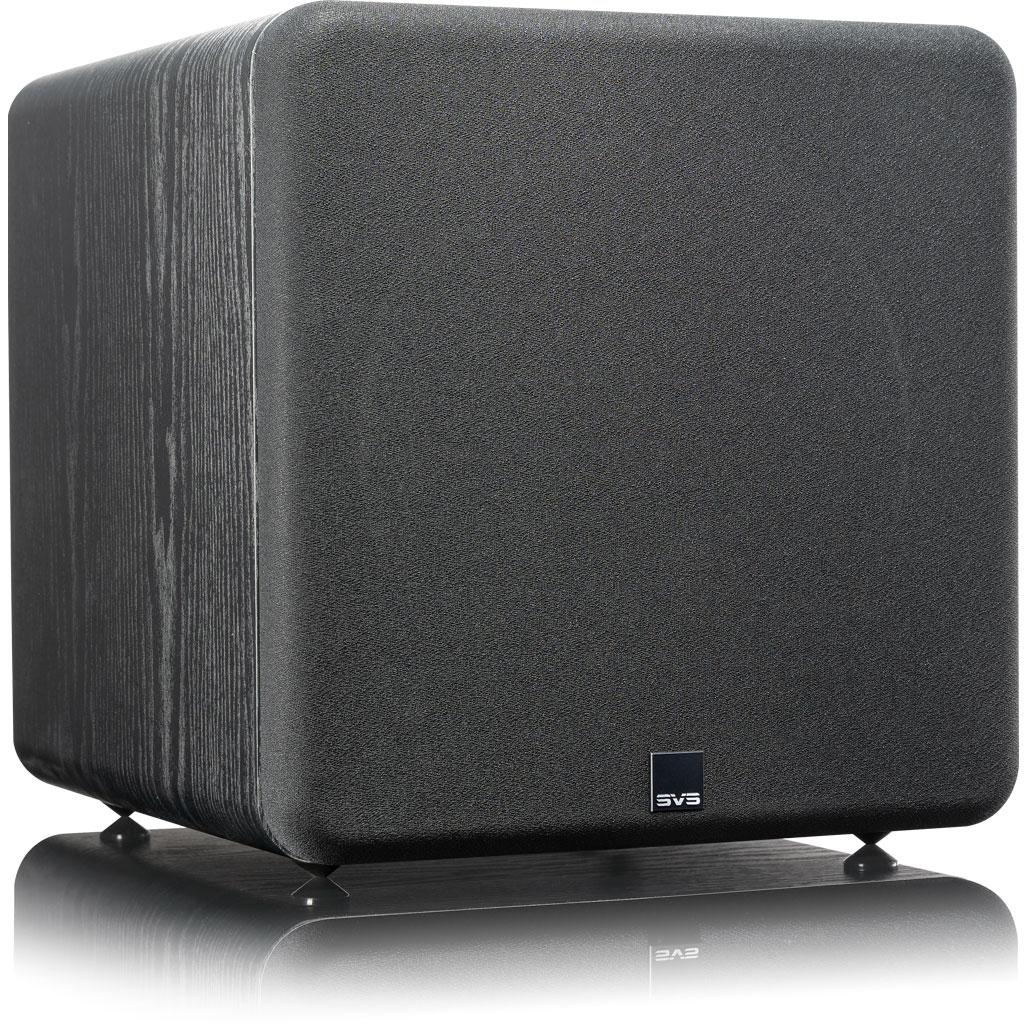

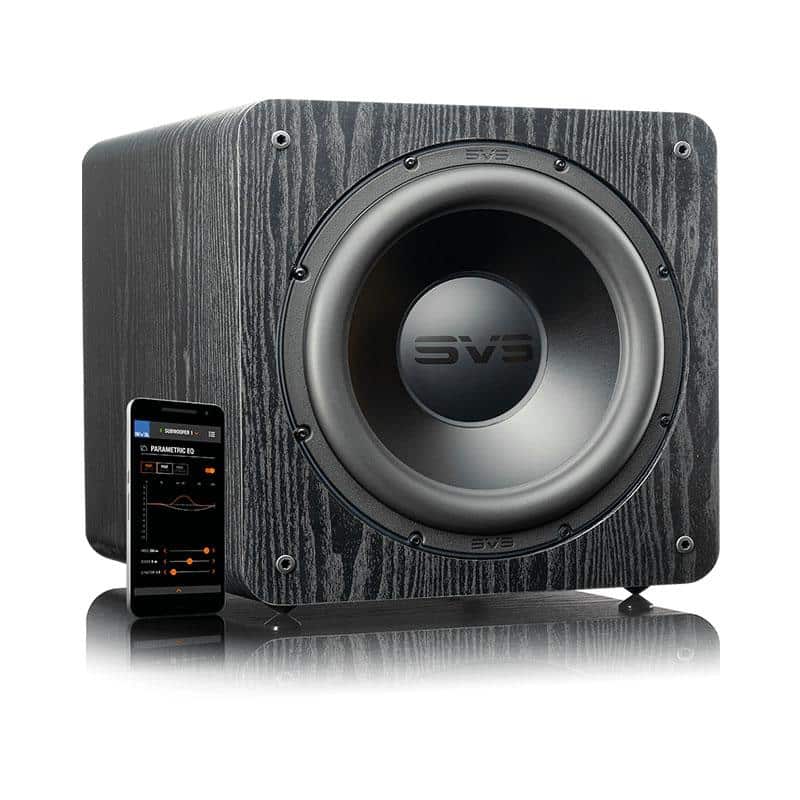

SVS SB-2000 Pro Subwoofer (Black Ash)
Jaw-dropping deep bass extension and massive output with stunning musicality that will delight both audiophiles and home theater fans. Features all-new 12-inch SVS driver, 550 Watts RMS, 1,500+ Watts peak power Sledge amplifier with fully discrete MOSFET output, and SVS subwoofer DSP smartphone app in a compact cabinet measuring roughly 15-inches on all sides.
Features:
- 12″ high-excursion SVS driver
- Sealed
- Class D Amplifier with 550+W RMS / 1500+W Peak
- Features the SVS Subwoofer DSP smartphone app
- Iso-elastomer feet, non-resonant extra-thick ABS fabric mesh grille included
- Dimensions: 14.6″ (H) 14.2″ (W) 15.6″ (D)
SVS SB-2000 Pro Subwoofer
Room-filling output and low frequency extension below 20 Hz with audiophile refinement and musicality,
SB-2000 Pro brings reference subwoofer performance to more people than ever from a compact cabinet
measuring only 15-inches on all sides. Features all-new 12-inch high-excursion SVS driver and 550 watts RMS,
1,500+ watts peak power Sledge STA-550D amplifier with fully discrete MOSFET output.
Harnessing the massive power while ensuring unerring control and room-energizing bass response is a 50 MHz
Analog Devices Audio DSP. SB-2000 Pro also features the SVS subwoofer smartphone app for convenient control
of volume, DSP functions, custom presets and more.
SVS SB-2000 Pro Subwoofer Specifications:
Summary:
FREQUENCY RESPONSE : 19-240 Hz ±3 dB
MAXIMUM ACOUSTIC OUTPUT :
AMPLIFIER Type : Class D with Analog Preamp Stage
AMPLIFIER POWER (CONT/PEAK) : 550W RMS / 1500+W Peak
WOOFER : 12” Long-Throw Driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Acoustic Suspension (Sealed)
INPUTS : Stereo RCA/LFE
HEIGHT : 14.6” (372mm)
WIDTH : 14.2” (360mm)
DEPTH : 15.6” (395mm)
WEIGHT : 47.2lbs (21.4kg)
FINISH : Black Ash
Frequency Response / Acoustic Data:
- 19-240 Hz +/- 3 dB
- Expect 2-3 Hz deeper extension in small to mid-size rooms.
- 2-meter ground plane away from reflective structures (quasi-anechoic).
- Roll-off slope specifically optimized to take maximum advantage of available room gain.
Subwoofer Specs:
- Premium Black Ash and Piano Gloss Black finish options
- Protective non-resonant extra-thick ABS fabric mesh grille
- Front-firing 12-inch high-excursion SVS driver

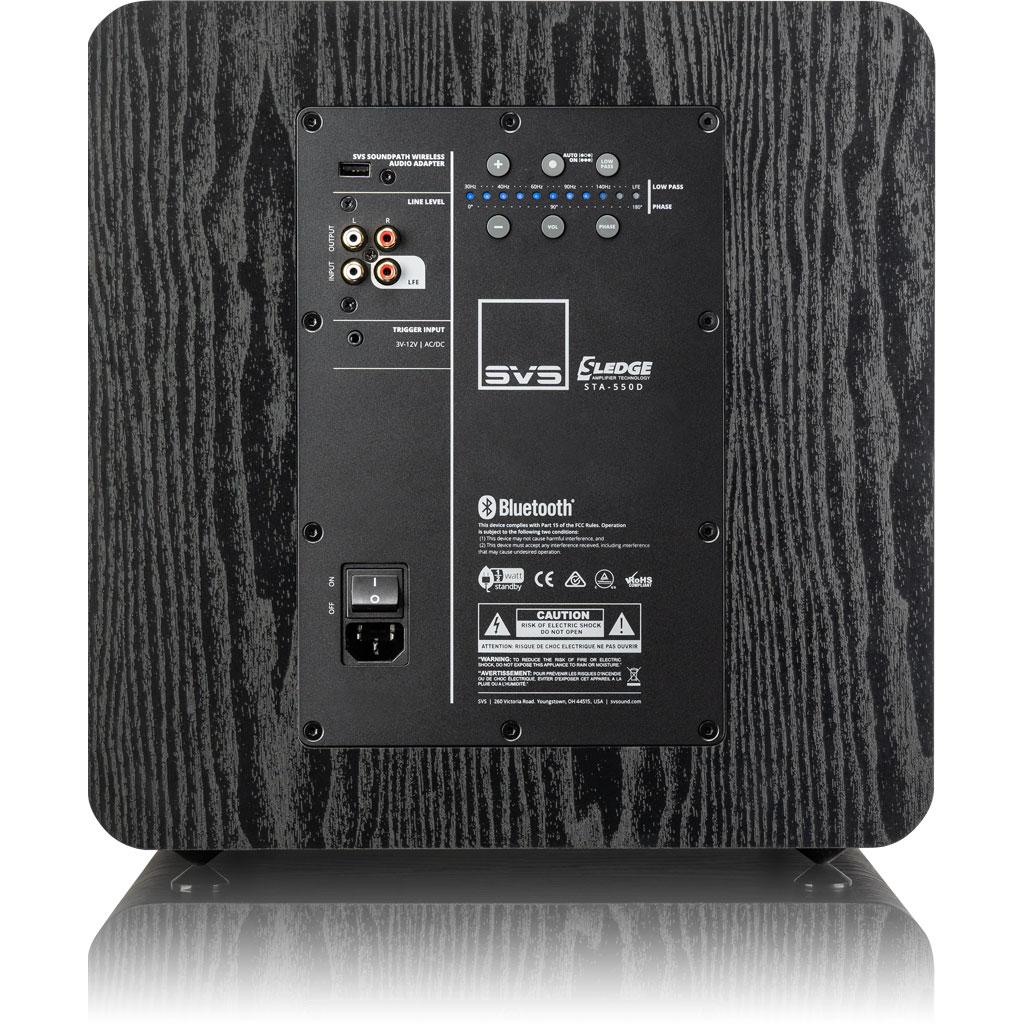

- Rear-mounted amplifier with Intelligent Control Interface (ICI)
- Iso-elastomer feet
- Robust Medium Density Fiberboard (MDF) cabinet construction
- Dimensions (w/ grille): 14.6” (372mm) H X 14.2” (360mm) W X 15.6” (395mm) D
- Dimensions (without grille): 14.6” (372mm) H X 14.2” (360mm) W X 14.6” (371mm) D
- Shipped Dimensions: 20” (508mm) H X 18.8” (502mm) W X 22.5” (571mm) D
- Weight (unboxed): 38.6lbs (17.5kg) with Grill
- Shipped Weight: 47.2lbs (21.4kg)
Driver Specs:
- All-new proprietary 12-inch high-excursion SVS 2000 Pro subwoofer driver with overhung motor
- Dual layer high purity copper voice coil provides maximum magnetics at extreme excursion while reducing
mass and improving driver efficiency. Built around a premium grade 2” polyimide impregnated fiberglass former for maximum
thermal conductivity. - Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic force to drive the
highest levels of excursion, SPL, and start/go power for the deepest and most authoritative bass possible. - New premium powder coated basket, FEA optimized for maximum rigidity, tensile strength, and energy transference.
- All new 12-inch 1050 aluminum vented cone ensures a light, ridged, and neutral radiating surface.
- Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity at full
excursion for exceptionally tight and fast output, even at reference volumes. - Extreme oversized low carbon vented 1008 steel U-yoke and top plate provide superior cooling and improved magnetics
for maximum performance and efficiency. - Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity, and improve magnetic
linearity. - Dual balanced 24-strand silver plated Litz wire high temperature leads woven through the Nomex composite spider
provide a pristine electrical connection from the amplifier to the voice coil. - Nickle-plated high-tension spring terminals.
- Proprietary injection molded gasket and extreme-excursion surround maintains ideal pistonic motion for pinpoint
accuracy and control.
SVS Sledge-550D Amplifier Specs:
- Massively powerful Sledge 550-watt RMS Class-D design with 1,500+ watts of Peak Power
- High efficiency cool-running Class-D switching topology with massive 25 Amp 600 Volt MOSFET’s result in lower EMI
and highest efficiency while providing effortless power to produce SPLs and low frequency output with pristine clarity well
beyond reference listening levels. - High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is most advanced subwoofer
processor available in a home subwoofer. - Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation with three
parametric EQs for absolute best alignment with speakers and optimized performance in any room. - Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets allow custom tuning
for every room and system. - RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.
- All new rear panel Intelligent Control Interface (ICI) user interface with push-button controls.
- USB output for service and powering accessories like the SVS SoundPath Wireless Audio Adapter for wireless subwoofer
placement. - Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.
- Input impedance 16kohm (unbalanced RCA).
- Green 0.5-watt low standby power consumption.
- RoHS compliant, lead-free construction, world-wide safety certifications.
SVS App Specs:
- Bluetooth controlled subwoofer DSP smartphone app works with iOS, Android and Amazon operating systems.
- Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain and all other
bass management functions. - Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
- Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
- Easy-to-follow tutorial provides clear guidance for all functions.
Accessories:
- Protective non-resonant extra-thick ABS fabric mesh grill
- Iso-elastomer feet included
- Extra heavy-duty, high current 6-foot power cord
- Quick Start Guide
| Weight | 21.4 kg |
|---|---|
| Dimensions | 57.1 × 50.2 × 50.8 cm |
| Frequency Response | 19-240 Hz +/- 3 dB |
| Amplifier | Class D with Analog Preamp Stage |
| Amplifier Power (Cont/Peak) | 550 W RMS / 1500+ W Peak |
| Driver Components | 12” Long-Throw High Excursion Driver |
| Enclosure Material | MDF |
| Enclosure Type | Acoustic Suspension (Sealed) |
| Inputs | Unbalanced stereo input/output |
| Height | 14.6” (37.2cm) |
| Width | 14.2” (36cm) |
| Depth | 15.6” (39.5cm) |
| Weight | 38.6lbs (17.5kg) with Grill |
| Finishes | Black Ash |
