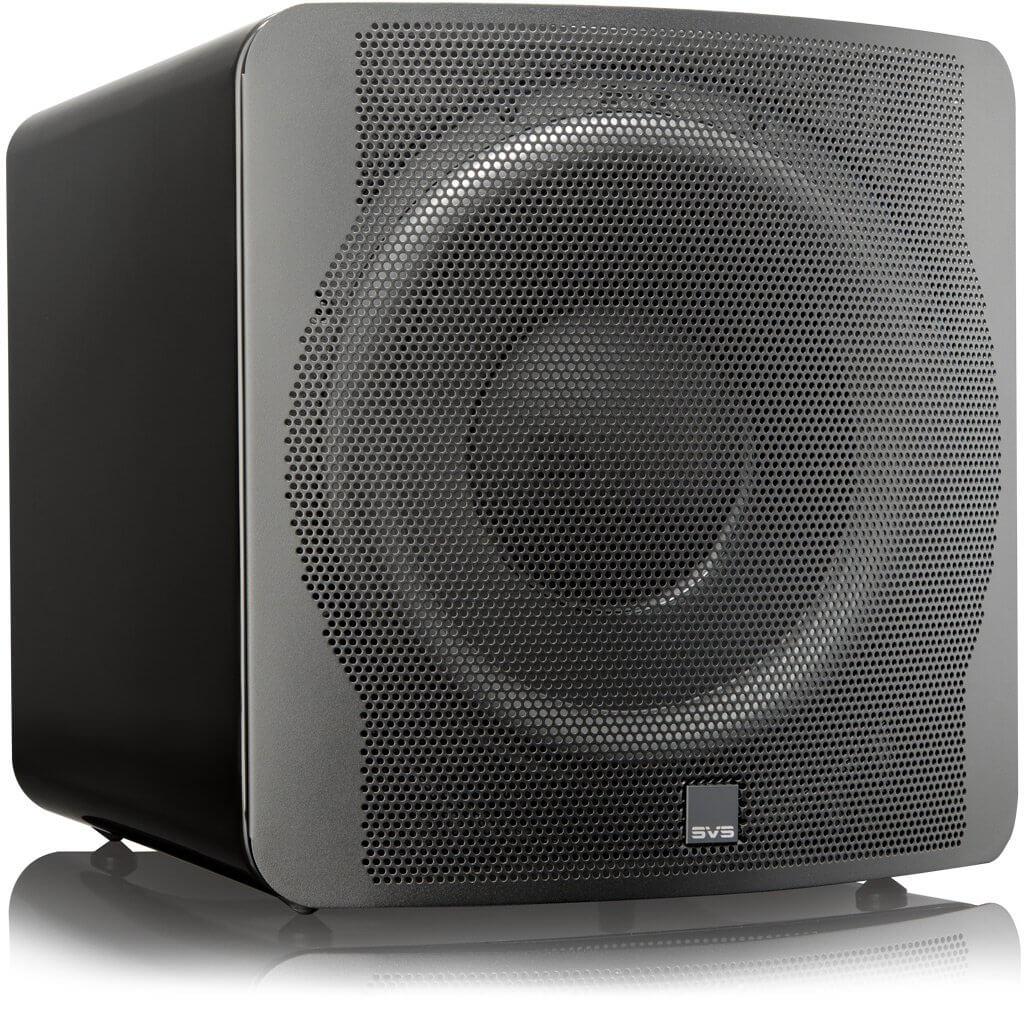

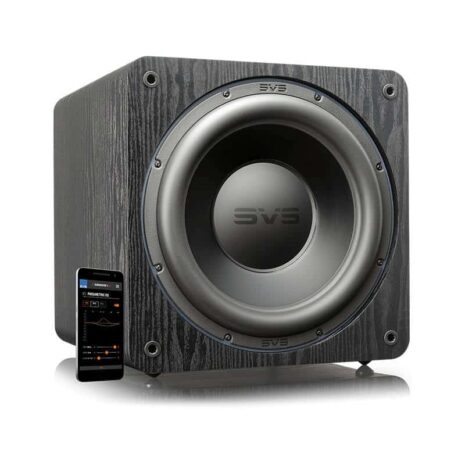

SVS SB-3000 Subwoofer (Black Ash)
Chest-thumping output and extreme low frequency extension with stunning refinement and musicality – reference subwoofer performance has never been available in this price range or from a cabinet of this size, ever.
The SB-3000 features an all-new first ever 13-inch high-excursion SVS driver and 800 watts RMS, 2,500+ watts peak power Sledge amplifier with fully discrete MOSFET output. Its deep and thunderous low frequency output with revealing clarity and flawless tonal accuracy delights hardcore audiophiles and home theater fans alike. Measuring just over 15-inches cubed, the SB-3000 outperforms much larger subwoofers and takes command of a room sonically without taking over visually.
Features:
- 13″ high-excursion SVS driver
- Acoustic Suspensions (Sealed)
- Class D Amplifier with 800+W RMS / 2500+W Peak
- Features the SVS Subwoofer DSP smartphone app
- Dimensions: 15.6″ (H) 15.2″ (W) 17.8″ (D)
SVS SB-3000 Pro Subwoofer
Unheard of reference subwoofer performance for the price and also for its compact size differentiate the SB-3000 subwoofer
from anything available. A sophisticated 800 watts RMS, 2,500+ watts peak power Sledge STA-800D2 DSP amplifier, innovative
new 13-inch high-excursion SVS driver and an optimized sealed cabinet design take control of a room with deeper bass and
higher output levels than what is typically possible from a relatively compact subwoofer.
An ideal solution for reference bass in audiophile music systems or home theaters, the SB-3000 sets all performance
benchmarks at its price and leaves larger and more expensive subs trembling in its wake.
SVS SB-3000 Pro Subwoofer Specifications:
Summary:
FREQUENCY RESPONSE : 18-270Hz ±3 dB
MAXIMUM ACOUSTIC OUTPUT :
AMPLIFIER Type : Class D with Analog Preamp Stage
AMPLIFIER POWER (CONT/PEAK) : 800W RMS / 2500+W Peak
WOOFER : 13” Long-Throw Driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Acoustic Suspension (Sealed)
INPUTS : Stereo RCA/LFE
HEIGHT : 15.6” (397mm)
WIDTH : 15.2” (385mm)
DEPTH : 17.8” (451mm)
WEIGHT : 54.5 lbs. (24.7 kg)
FINISH : Black Ash
1. Frequency Response / Acoustic Data:
- 18-270Hz ± 3 dB
- Roll-off slope specifically optimized to take maximum advantage of available room gain
- 2-meter ground plane away from reflective structures (quasi-anechoic)
2. Subwoofer Specs:
- Premium Black Ash and Piano Gloss Black finish options
- Protective non-resonant steel mesh grille
- Front-firing 13 inch high-excursion SVS driver
- Rear-mounted amplifier with Intelligent Control Interface(ICI)
- Screw-in rubber feet
- Robust Medium Density Fiberboard (MDF) cabinet construction
- Dimensions (w/ grille): 15.6” (397mm) H X 15.2” (385mm) W X 17.8” (451mm) D
- Dimensions (without grille): 15.6” (397mm) H X 15.2” (385mm) W X 15.7” (399mm) D
- Shipped Dimensions: 23.7” (603mm) H 20.7” (527mm) W X 20.9” (530mm) D
- Weight (unboxed): 54.5 lbs. (24.7 kg)
- Shipped Weight: 63.6lbs (28.9kg)
3. Driver Specs:
- All New Proprietary 13” high-excursion SVS 3000 Series Subwoofer Driver.
- SVS first flat edge wound split-wind voice coil provides maximum magnetics at high excursion
while reducing mass and improving overall driver efficiency. Built around a premium grade 2” polyimide
impregnated fiberglass former for maximum thermal conductivity. - Two massive, dedicated toroidal ferrite magnets generate unparalleled levels of magnetic
force to drive the highest levels of excursion, SPL, and start/go power for the deepest and most
authoritative bass possible. - All-new High density FEA-optimized cast aluminum basket provides unequaled levels of rigidity,
tensile strength, and energy transference available from a subwoofer. - Four balanced 24-strand silver plated Litz wire high temperature leads woven through the 6.5”
2-ply Nomex composite spider provide a pristine electrical connection from the amplifier to the voice coil. - All new 13” 1050 Aluminum vented cone ensures a light, rigid, and neutral radiating surface.
- Precision machined motor elements and narrow tolerance suspension parts produce unmatched linearity
at full excursion for exceptionally tight and fast output, even at reference volumes. - Extreme oversized low carbon vented 1008 steel U-yoke and top plate provide superior cooling and
improved magnetics for maximum performance and efficiency. - 6063 Aluminum shorting sleeve reduces gap induction and distortion, enhances thermal conductivity,
and improve magnetic linearity. - Nickel-plated high-tension spring terminals.
- Proprietary injection molded gasket and SBR extreme-excursion surround maintains ideal pistonic
motion for pinpoint accuracy and control.
4. Amplifier Specs:
- Massively powerful Sledge 800-watt continuous Class D design with 2,500+ watts of Peak Power.
- High efficiency cool-running Class-D switching topology with massive 25 Amp 600 Volt MOSFET’s result
in lower EMI and highest efficiency while providing effortless power to produce SPLs and low frequency output
with pristine clarity well beyond reference listening levels. - High resolution 50Mhz Analog Devices Audio DSP with double precision 56bit filtering is the most
advanced subwoofer processor available for perfect audio reproduction. - Unmatched intelligence from user adjustable low pass, phase, polarity and room gain compensation
with three parametric EQs for absolute best alignment with speakers and optimized performance in any room. - Groundbreaking SVS Bluetooth DSP control app for iOS and Android devices with three user presets
allow custom tuning for every room and system. - RCA stereo input/output with ultra-wide input voltage for consumer and professional audio applications.

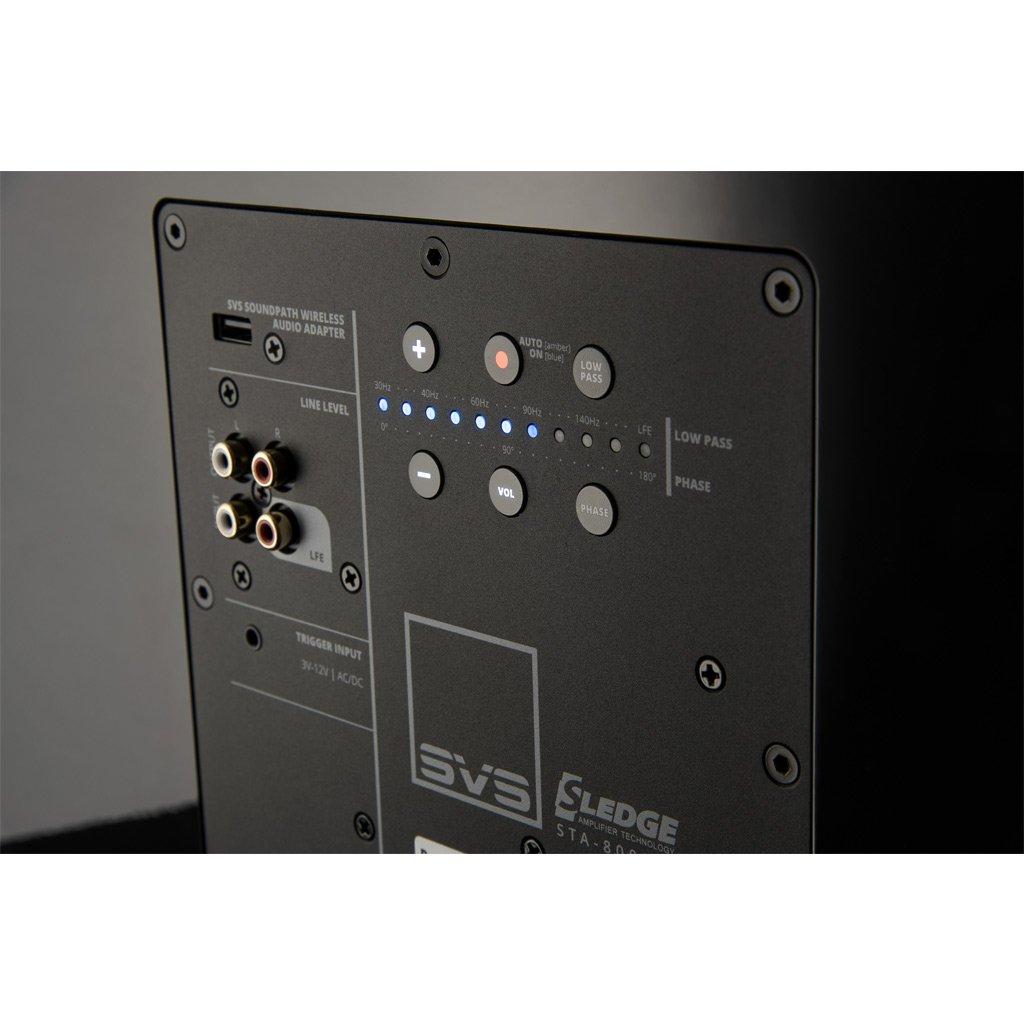

- All new rear panel Intelligent Control Interface (ICI) user interface with bright back-lit controls.
- Auto/On and 3-12V AC/DC trigger for Maximum Installation Convenience.
- Input impedance 16kohm (unbalanced RCA).
- Green 0.5-watt low standby power consumption.
- RoHS compliant, lead-free construction, world-wide safety certifications.
5. SVS App Specs:
- The most powerful and flexible Bluetooth controlled subwoofer DSP app, works with both iOS and
Android operating systems. - Easiest and most convenient way to adjust crossover frequencies, parametric EQ, polarity, room gain
and all other bass management functions. - Three convenient custom presets allow for perfect tuning in any room or system, from your favorite seat.
- Single tap adjustment for controlling variable port tuning with standard, extended and sealed modes.
- Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface.
- Easy-to-follow tutorial provides clear guidance for all functions.
6. Included Accessories:
- Protective non-resonant steel mesh grille
- Iso-elastomer feet included
- Extra heavy-duty, high current 6′ power cord
| Weight | 44 kg |
|---|---|
| Dimensions | 50.3 × 52.7 × 60.3 cm |
| Frequency Response | 18-270Hz ± 3 dB |
| Amplifier | Class D with Analog Preamp Stage |
| Amplifier Power (Cont/Peak) | 800 W RMS / 2500+ W Peak |
| Driver Components | 13” Long-Throw High Excursion Driver |
| Enclosure Material | MDF |
| Enclosure Type | Acoustic Suspension (Sealed) |
| Inputs | Unbalanced stereo input/output |
| Height | 15.6” (39.7cm) |
| Width | 15.2” (38.5cm) |
| Depth | 17.8” (45.1cm) |
| Weight | 54.5 lbs. (24.7 kg) |
| Finishes | Black Ash |
