Description

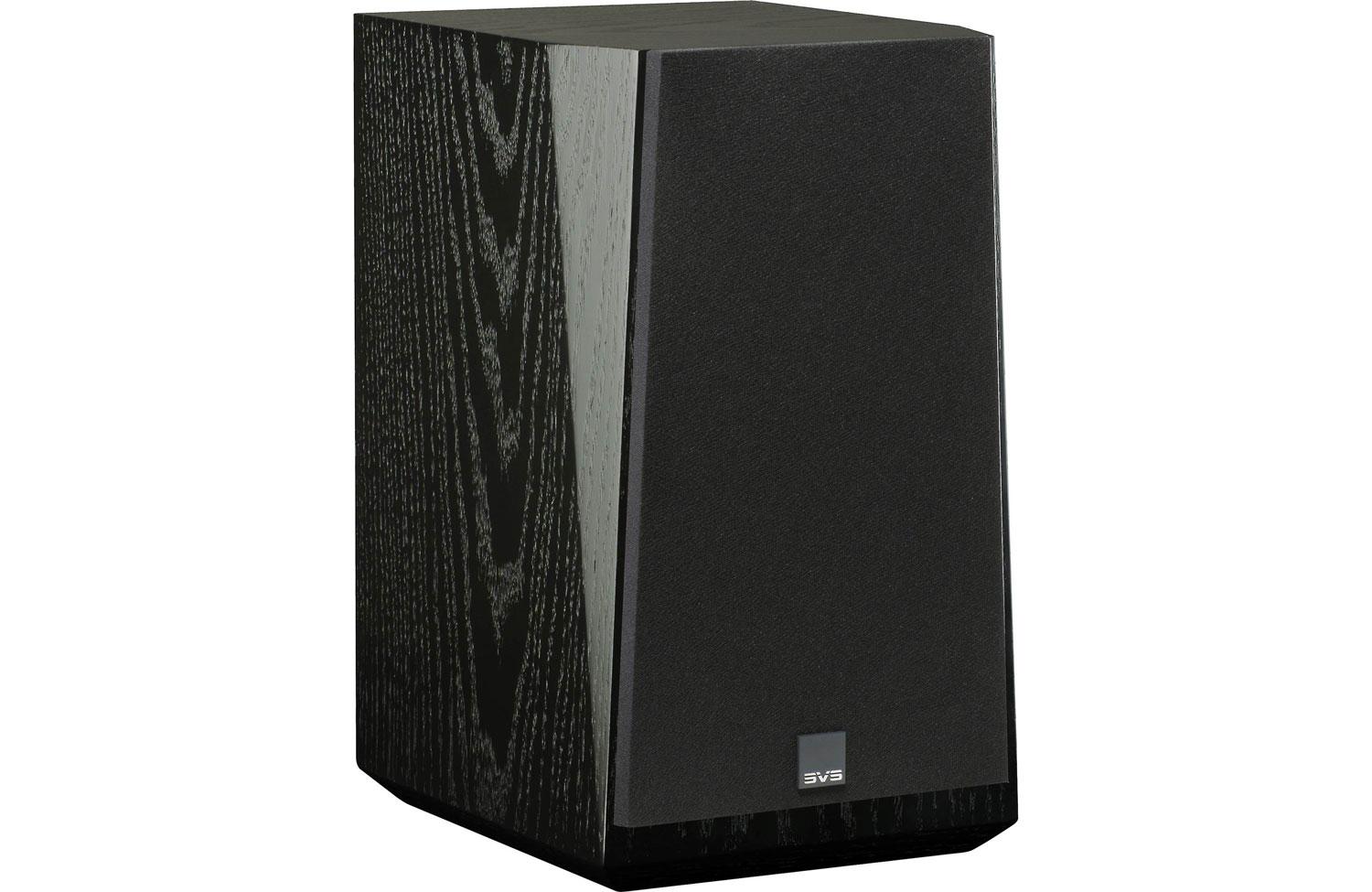

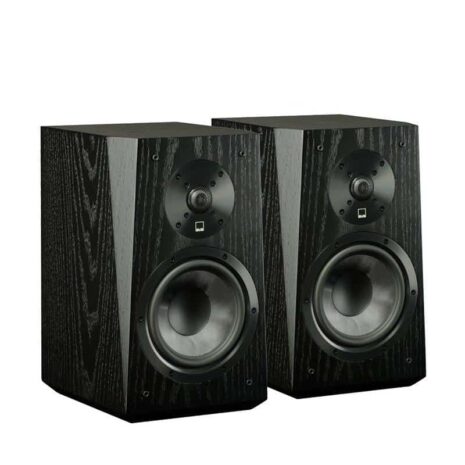

SVS Ultra Bookshelf Speakers
The SVS Ultra Bookshelf speakers are the rare speaker design that deliver effortless full-range sound and an expansive soundstage with pitch-perfect accuracy and pinpoint imaging. A true reference quality speaker, critics and music lovers celebrate the absolute transparency while home theater speaker fans laud the room-energizing dynamics and palpable bass output. It’s an amazingly balanced speaker that radiates acoustic power while rendering the finest details with precision and refinement.
Specification:
FREQUENCY RESPONSE : 45 Hz-25 kHz (±3 dB)
SENSITIVITY : 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-150 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Tweeter to Woofer – 2000hz
HIGH FREQUENCY DRIVER : 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : one 6.5″ Composite Glass Fiber woofer
MIDRANGE FREQUENCY DRIVER : N/A
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : 1.7” wide-flared rear-firing port
INPUTS : Dual 5 way binding posts
HEIGHT : 15″
WIDTH : 8.5″
DEPTH : 10.9″
PRODUCT WEIGHT LBS : 19 lb per Speaker
FINISHES : Real black oak veneer
SVS Ultra Bookshelf Speakers Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 45 Hz-32 kHz (+/-3 dB).
- Nominal impedance: 8 ohms.
- Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-150 watts.
2. Speaker Specs:
- Bookshelf Loudspeaker
- Real black oak veneer and piano gloss black finish options
- Dual gold-plated 5-way binding posts
- 1.7” wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Cabinet Dimensions: 15” (H) x 8.5” (W) x 10.6” (D) (without grille)
- Overall Dimensions: 15” (H) x 8.5” W x 10.9” (D) (with grille)
- Shipped Dimensions: 24″ (H) x 20″ (W) x 14″ (D)
- Weight: 19 pounds
- Shipped Weight: 42 pounds
3. Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio
6.5” Woofers:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
- Aluminum shorting rings to reduce gap inductance and lower distortion
- Long stroke motor and suspension for high output
- Vented voice coil formers to minimize air compression artifacts at high drive levels
4. Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Crossover frequency and slopes optimized for excellent off-axis polar response, outstanding phase coherency, and total radiated sound power
- Tweeter-to-woofer crossover: 2 kHz
Cabinet:
- Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response
- FEA-optimized bracing reduces cabinet resonances
