SVS Ultra Bookshelf Speakers (Piano Black)
Reference bookshelf speakers with flawless tonal balance, stunning dynamics, unveiled highs and amazing low frequency extension. The Ultra Bookshelf speakers perform in the echelon of the world’s finest audiophile and home theater loudspeakers, yet cost a fraction of the price.
Features:
- 1” Aluminum Dome Tweeter with FEA- Optimized diffuser
- One 6.5″ Composite Glass Fiber Woofer

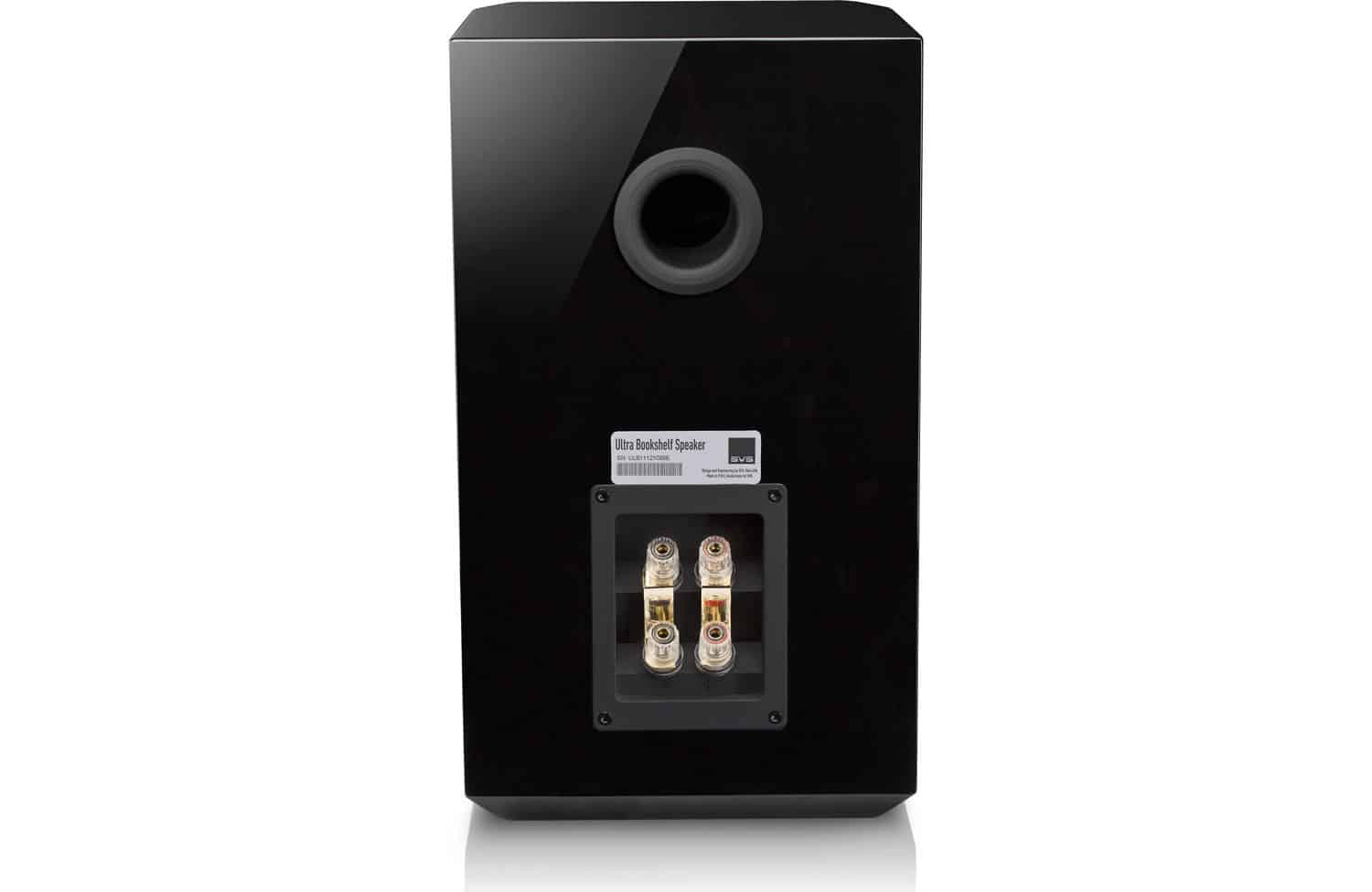

- 1.7” wide-flared rear-firing port

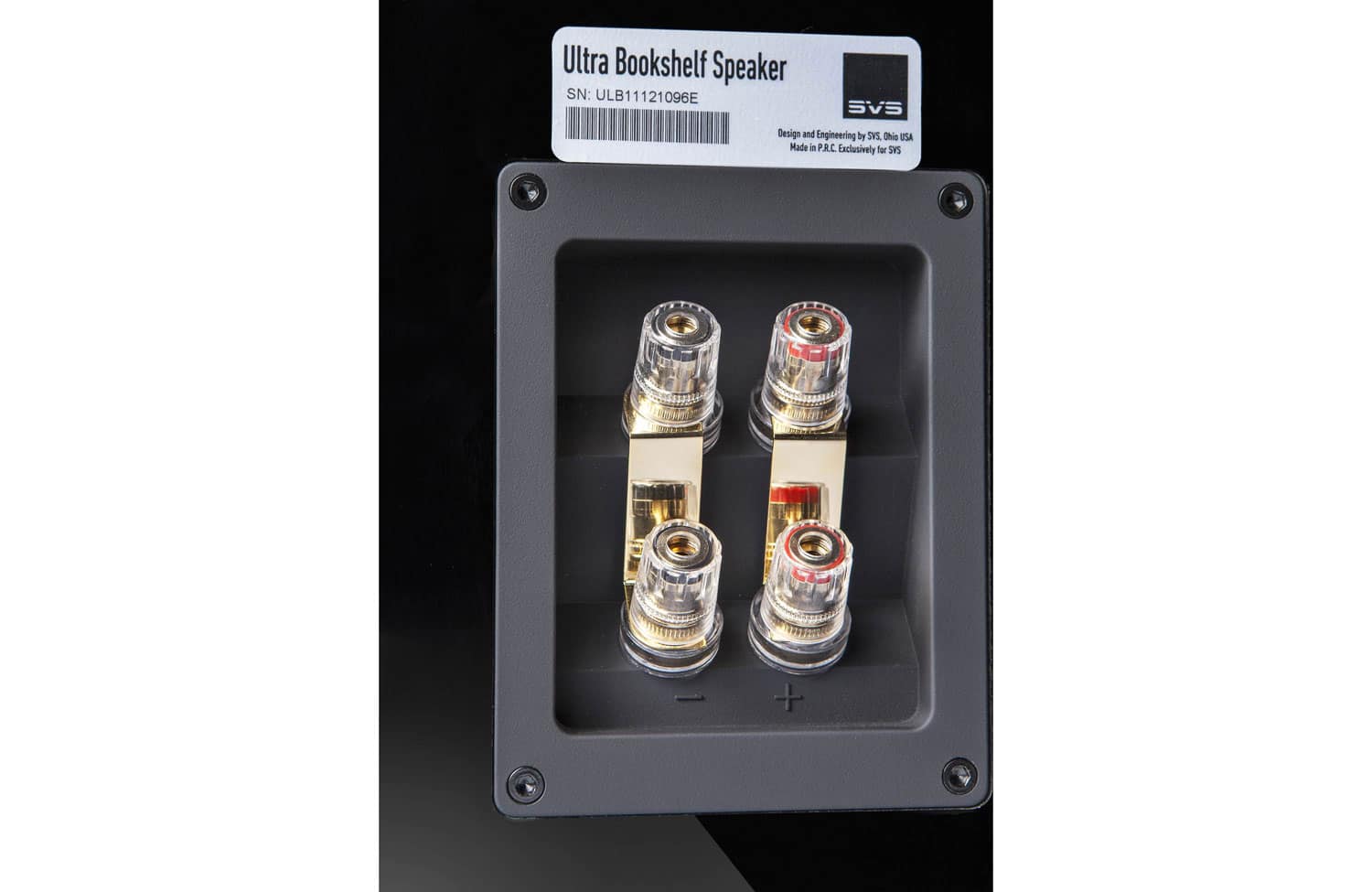

- Dual Gold Plated 5-way binding post
- Cloth grille with pin/cup retention system
- Overall Dimensions: 15” (H) x 8.5” W x 10.9” (D) (with grille)
SVS Ultra Bookshelf Speakers
The SVS Ultra Bookshelf speakers are the rare speaker design that deliver effortless full-range sound and an expansive soundstage with pitch-perfect accuracy and pinpoint imaging. A true reference quality speaker, critics and music lovers celebrate the absolute transparency while home theater speaker fans laud the room-energizing dynamics and palpable bass output. It’s an amazingly balanced speaker that radiates acoustic power while rendering the finest details with precision and refinement.
Specification:
FREQUENCY RESPONSE : 45 Hz-25 kHz (±3 dB)
SENSITIVITY : 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-150 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Tweeter to Woofer – 2000hz
HIGH FREQUENCY DRIVER : 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : one 6.5″ Composite Glass Fiber woofer
MIDRANGE FREQUENCY DRIVER : N/A
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : 1.7” wide-flared rear-firing port
INPUTS : Dual 5 way binding posts
HEIGHT : 15″
WIDTH : 8.5″
DEPTH : 10.9″
PRODUCT WEIGHT LBS : 19 lb per Speaker
FINISHES : piano gloss black
SVS Ultra Bookshelf Speakers Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 45 Hz-32 kHz (+/-3 dB).
- Nominal impedance: 8 ohms.
- Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-150 watts.
2. Speaker Specs:
- Bookshelf Loudspeaker
- Real black oak veneer and piano gloss black finish options
- Dual gold-plated 5-way binding posts
- 1.7” wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Cabinet Dimensions: 15” (H) x 8.5” (W) x 10.6” (D) (without grille)
- Overall Dimensions: 15” (H) x 8.5” W x 10.9” (D) (with grille)
- Shipped Dimensions: 24″ (H) x 20″ (W) x 14″ (D)
- Weight: 19 pounds
- Shipped Weight: 42 pounds
3. Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio
6.5” Woofers:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
- Aluminum shorting rings to reduce gap inductance and lower distortion
- Long stroke motor and suspension for high output
- Vented voice coil formers to minimize air compression artifacts at high drive levels
4. Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Crossover frequency and slopes optimized for excellent off-axis polar response, outstanding phase coherency, and total radiated sound power
- Tweeter-to-woofer crossover: 2 kHz
Cabinet:
- Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response
- FEA-optimized bracing reduces cabinet resonances
| Weight | 19.08 kg |
|---|---|
| Dimensions | 35.56 × 50.8 × 61 cm |
| Frequency Response | 45 Hz-32 kHz (+/-3 dB). |
| Sensitivity | 87 dB (2.83V @ 1 meter full-space, 300-3kHz) |
| Power Handeling (Cont/Peak) | Recommended Amplifier 20-150W |
| Nominal Impedance | 8 ohms compatible |
| Crossover Frequency | Tweeter-to-woofer crossover: 2 kHz |
| High Frequency Driver | 1” Aluminum Dome Tweeter with FEA- Optimized diffuser |
| Midrange Driver | N/A |
| Low Frequency Driver | One 6.5" Composite glass-fiber |
| Enclosure Material | MDF |
| Enclosure Type | Bass-Reflex via wide flared rear-firing port |
| Inputs | Dual gold-plated 5-way binding posts |
| Height | 15" |
| Width | 8.5" |
| Depth | 10.9" |
| Weight | 19 lbs per speaker |
| color | Piano Black |
| Brand | SVS |
