Description

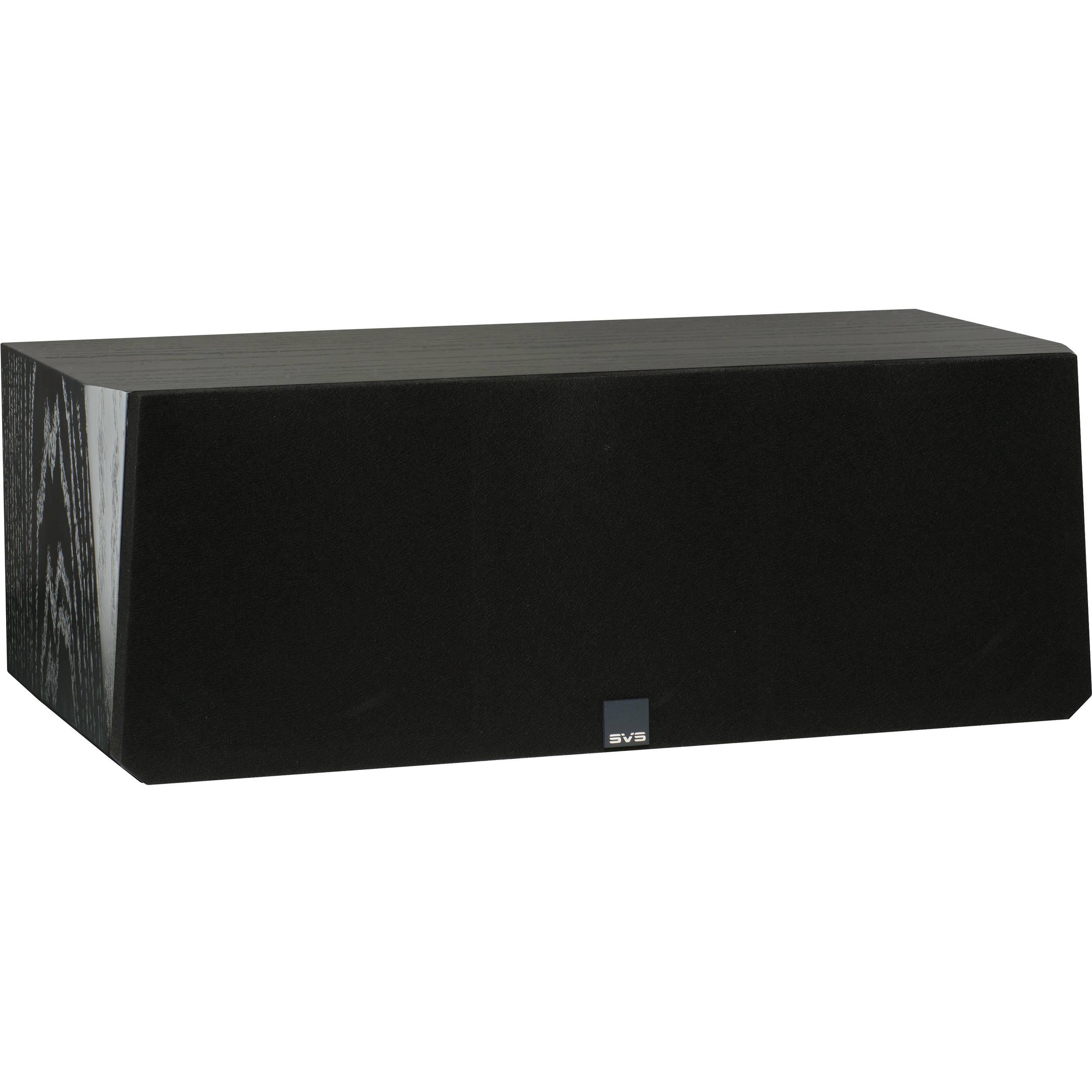

SVS Ultra Center Speakers
The reference 3-way SVS Ultra Center channel speaker reproduces the most demanding movie and music content
with depth, clarity and vigor, while serving as the main soundstage anchor and critical sonic bridge between the
front left and right speakers in a surround sound home theater. Amazingly detailed and revealing of the finest
nuance and textures with excellent low frequency extension, the SVS Ultra Center combines power and precision
to outperform much larger and more expensive center channel speakers.

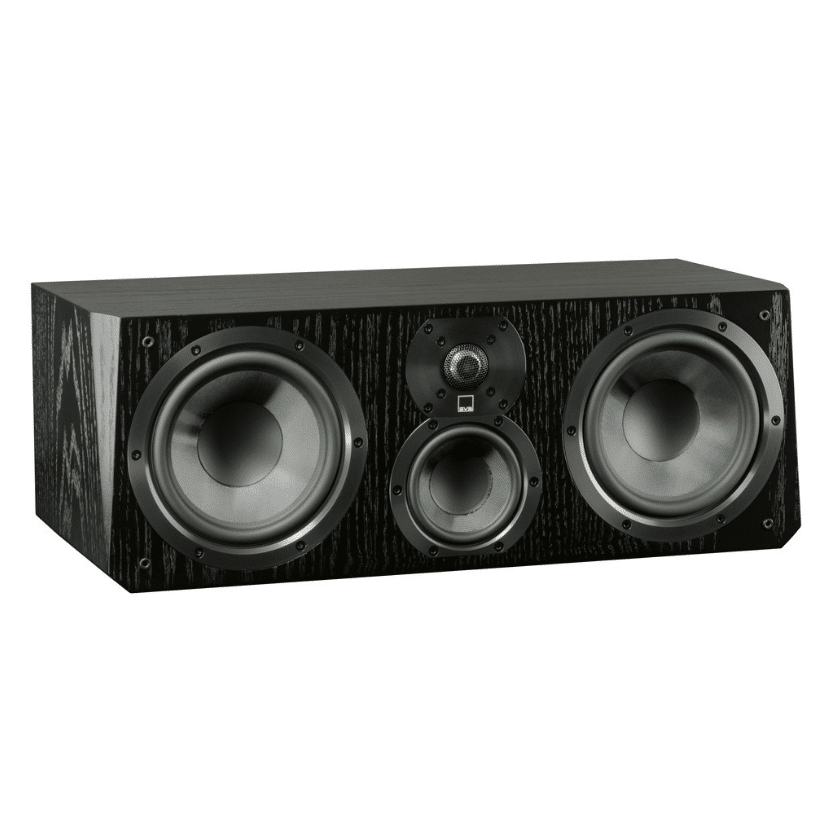

Built without compromise, the SVS Ultra Center speaker features a painstakingly tuned SoundMatch three-way
crossover with dual 6.5-inch glass fiber composite woofers and a vertically aligned 1-inch aluminum dome tweeter
and 4-inch midrange driver. From the acoustically enhanced cabinet geometry to the high-end components and
build quality, the Ultra Center is a star among home theater speakers.
Specification:
FREQUENCY RESPONSE : 45 Hz-32 kHz (±3 dB)
SENSITIVITY : 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-225 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Midrang-to-tweeter : 2200hz, Midrange to woofer: 500Hz
HIGH FREQUENCY DRIVER : 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : Dual 6.5″ Composite Glass Fiber woofers
MIDRANGE FREQUENCY DRIVER : 4″ driver
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Dual 1.7” wide-flared rear-firing ports
INPUTS : Dual gold plated 5 way binding posts
HEIGHT : 8.2″
WIDTH : 22″
DEPTH : 10.9″
PRODUCT WEIGHT LBS : 31 lb
FINISHES : Real black oak veneer
SVS Ultra Center Speaker Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 45 Hz-32 kHz (+/-3 dB).
- Nominal impedance: 8 ohms.
- Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-225 watts.
2. Speaker Specs:
- Center Channel Loudspeaker
- Real black oak veneer and piano gloss black finish options
- Dual gold-plated 5-way binding posts
- Dual 1.7″ wide-flared rear-firing ports
- Cloth grille with pin/cup retention system
- Elastomer stick-on bumper feet (adds 3mm to height)
- Cabinet Dimensions: 8.2” (H) x 22″ (W) x 10.6” (D) (without grille)
- Overall Dimensions: 8.2” (H) x 22” (W) x 10.9” (D) (with grille)
- Shipped Dimensions: 14″ (H) x 27″ (W) x 15″ (D)
- Weight: 31 pounds
- Shipped Weight: 35 pounds
3. Driver Specs:
1” Aluminum Dome Tweeter:
- Vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio
4” Midrange Drivers:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
- Vented voice coil former to minimize air compression artifacts at high drive levels
6.5” Woofers:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
- Aluminum shorting rings to reduce gap inductance and lower distortion
- Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
- Vented voice coil formers to minimize air compression artifacts at high drive levels
4. Crossover & Cabinet Specs:
Crossover:
- 3-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Midrange-to-tweeter crossover: 2.2 kHz
- Midrange-to-woofer crossover: 500 Hz
Cabinet:
- Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response
- FEA-optimized bracing reduces cabinet resonances
