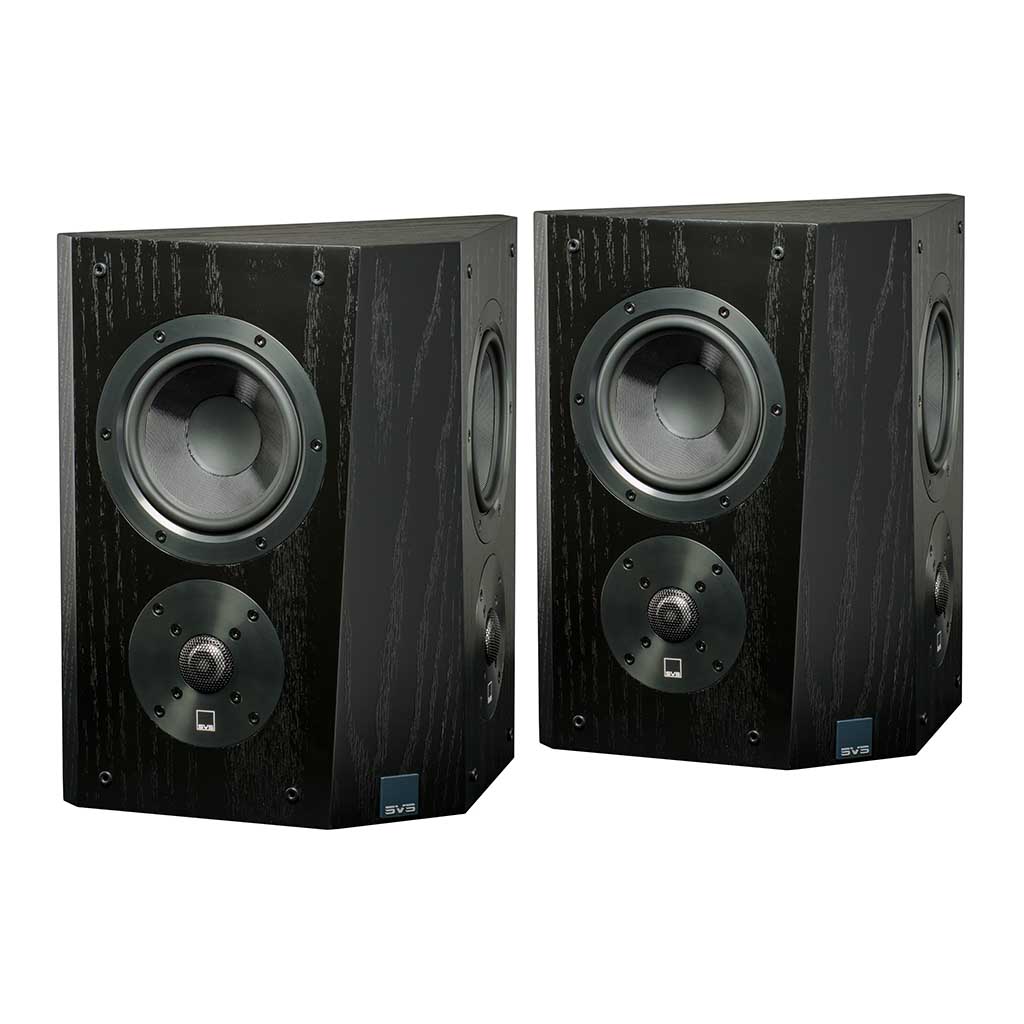

SVS Ultra Surround Speakers (Black Oak)
The Ultra Surround speaker’s charged dynamics and detailed soundstage convey seamless sonic transitions and convincing home theater surround sound effects with hard-hitting impact. Dual isolated tweeter and woofer crossovers allow for bipole, dipole, or innovative SVS Duet Mode, which creates two speakers in a single cabinet so you can go from 5.1 to 7.1 and beyond without adding more surround sound speakers.
Features:
- Dual 1” Aluminum Dome Tweeter with FEA- Optimized diffuser
- Dual 5.5″ Composite Glass Fiber Woofer
- Dual Independent Gold Plated 5-way binding post
- Cloth grille with pin/cup retention system
- Overall Dimensions: 14” (H) x 12.3” (W) x 7” (D) (with bracket)
SVS Ultra Surround Speakers
Innovative engineering and intelligent design come together in the SVS Ultra Surround home theater speakers.
Acoustically voiced to blend seamlessly with all models in the SVS Ultra and Prime series speaker lines, the Ultra
Surround speaker deeply immerses you in the onscreen action by conveying a massive soundstage and rendering
the smallest details with pinpoint clarity and spatial imaging.
Designed with dual isolated SoundMatch two-way crossovers for each tweeter and woofer, the SVS Ultra Surround
can operate in either bipole, dipole, or in the unique SVS Duet Mode, which creates two separate speakers in a
single cabinet. In Duet mode, each set of drivers in the Ultra Surround speaker receives a discrete signal, so your
system can deliver true 7 channel surround sound using only 5 full-range speakers.
Specification:
FREQUENCY RESPONSE : 58 Hz-32 kHz (±3 dB)
SENSITIVITY : 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-250 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Tweeter to Woofer – 2000hz
HIGH FREQUENCY DRIVER : Dual 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : Dual 5.5″ Composite Glass Fiber woofers
MIDRANGE FREQUENCY DRIVER : N/A
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : Sealed
INPUTS : Dual Independent 5 way binding posts
HEIGHT : 14″
WIDTH : 12.3″
DEPTH : 7″
PRODUCT WEIGHT LBS : 18 lb per Speaker
FINISHES : Real black oak veneer
SVS Ultra Surround Speakers Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 58 Hz-32 kHz (+/-3 dB).
- Nominal impedance: 8 ohms.
- Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)
- Recommended amplifier power: 20-250 watts.
2. Speaker Specs:
- Dual Baffle Surround Loudspeaker
- Piano gloss black and real black oak veneer finish options

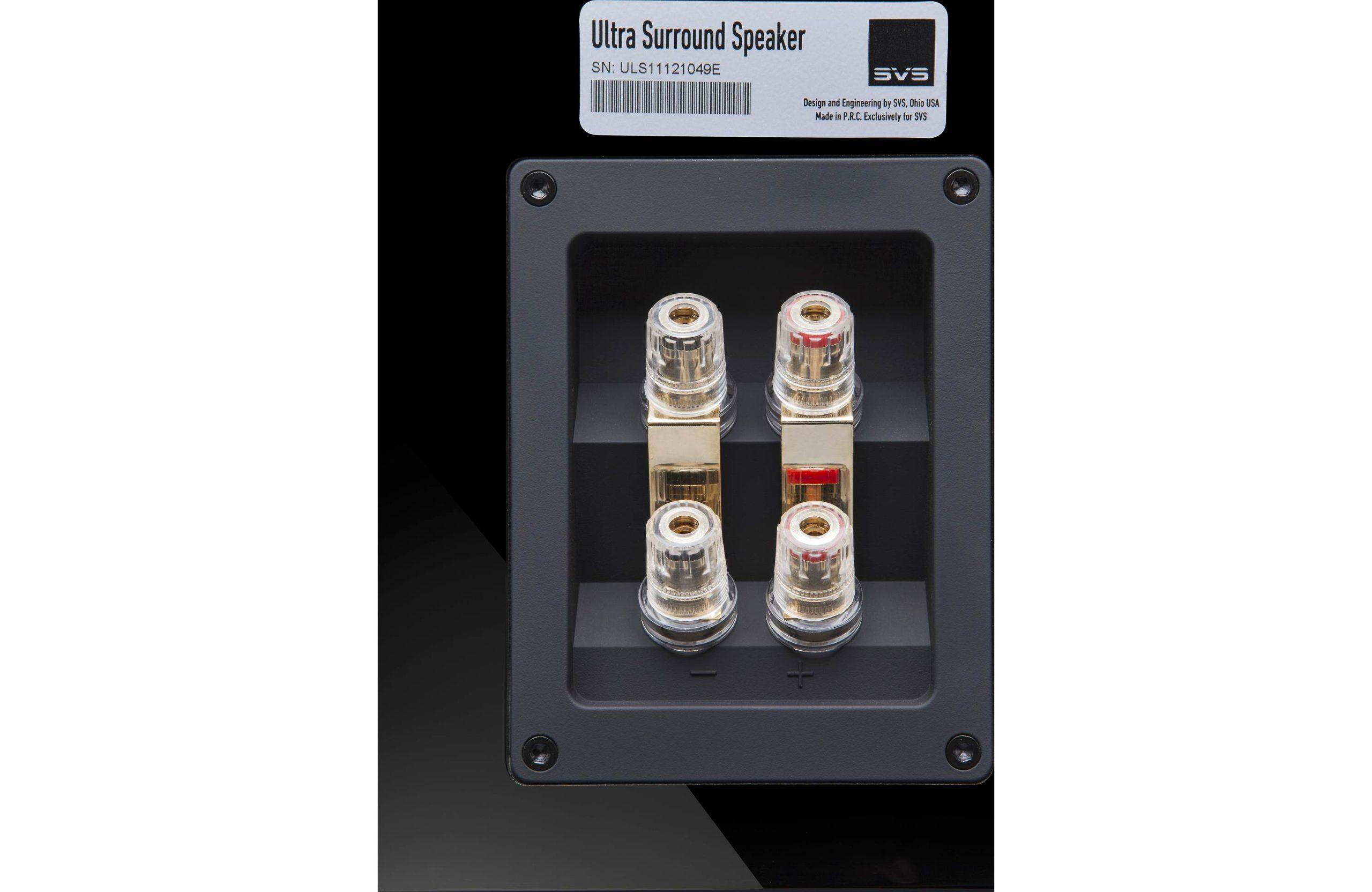

- Dual independent gold-plated 5-way binding posts
- Cloth grille with pin/cup retention system
- Aluminum wall mounting bracket with safety catch feature to help prevent inadvertent removal
- Elastomer stick-on bumper feet
- Cabinet Dimensions: 14” (H) x 12.3” (W) x 6.9” (D)
- Overall Dimensions: 14” (H) x 12.3” (W) x 7” (D) (with bracket)
- Shipped Dimensions: 19″ (H) x 22″ (W) x 17″ (D)
- Weight: 18 pounds
- Shipped Weight: 40 pounds
3. Driver Specs:
1” Aluminum Dome Tweeter:
- Vertically aligned tweeter and midrange improves horizontal axis polar response, with reduced lobing and comb filtering
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio
5.5” Woofers:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band.
- Aluminum shorting rings to reduce gap inductance and lower distortion
- Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
- Vented voice coil formers to minimize air compression artifacts at high drive levels
4. Crossover & Cabinet Specs:
Crossover:
- 2-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Dual isolated crossover networks allows for bipole, dipole or unique Duet mode
- Crossover frequency and slopes optimized for excellent off-axis polar response, outstanding phase coherency, and total radiated sound power
- Tweeter-to-woofer crossover: 2.0 kHz
Cabinet:
- Non-parallel cabinet panels reduces axial standing waves within the cabinet, reducing frequency response coloration
- Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted drivers all contribute to reduced edge diffraction and improved on-axis high frequency response
| Weight | 18.4 kg |
|---|---|
| Dimensions | 43.18 × 55.88 × 48.26 cm |
| Frequency Response | 58 Hz-32 kHz (+/-3 dB) |
| Sensitivity | 87 dB (2.83V @ 1 meter full-space, 300-3kHz) |
| Power Handeling (Cont/Peak) | Recommended Amplifier 20-250W |
| Nominal Impedance | 8 ohms compatible |
| Crossover Frequency | Tweeter-to-woofer crossover: 2 kHz |
| High Frequency Driver | Dual 1” Aluminum Dome Tweeters with FEA- Optimized diffuser |
| Midrange Driver | N/A |
| Low Frequency Driver | Dual 5.5" Composite glass-fiber woofers |
| Enclosure Material | MDF |
| Enclosure Type | Sealed |
| Inputs | Dual independent gold-plated 5-way binding posts |
| Height | 14" |
| Width | 12.3 |
| Depth | 7" |
| Weight | 18 lbs per speaker |
| color | black oak vaneer |
| Brand | SVS |
