Description
SVS Ultra Tower Speakers
Every design element of the SVS Ultra Tower speaker was scrutinized to achieve
cost-no-object audio performance and build quality. The flagship SVS loudspeaker
features countless design innovations and world-class build materials resulting in
reference quality sound and stunning dynamics beyond the reach of speakers costing
thousands more.
Whether rendering the warmth of vinyl, the finest details of a hi-res audio recording or
the aggressive, hard-hitting soundtrack of an action movie, the Ultra Tower speakers
deliver a powerful and convincing audio experience from the highest frequencies
to the lowest bass notes. The first time you hear them is like an epiphany that
reveals itself over and over with every listening session.
Specification:
FREQUENCY RESPONSE : 28 Hz-32 kHz (+/-3 dB)
SENSITIVITY : 88 dB (2.83V @ 1 meter full-space, 300-3kHz)
POWER HANDLING (CONT/PEAK) : Recommended Amplifier 20-300 watts
NOMINAL IMPEDANCE : 8 ohms Compatible
CROSSOVER FREQUENCY : Midrange-tweeter:2000hz,Bottom midrange taper frequency:700hz,
dual midrange to woofer:160hz
HIGH FREQUENCY DRIVER : 1” Aluminum dome tweeter
LOW FREQUENCY DRIVER : Dual 8″ woofers
MIDRANGE FREQUENCY DRIVER : Dual 6.5″ drivers
ENCLOSURE MATERIAL : MDF
ENCLOSURE TYPE : 3.5″ wide flared rear-firing port
INPUTS : Dual Gold Plated – 5 way binding posts
HEIGHT : 45.6″
WIDTH : 13.8″
DEPTH : 16.8″
PRODUCT WEIGHT LBS : 75.4 lb per Speaker
FINISHES : piano gloss black finish options
SVS Ultra Tower Speakers Highlights
1. Frequency Response / Acoustic Data:
- Rated bandwidth: 28 Hz-32 kHz (+/-3 dB).
- Nominal impedance: 8 ohms.
- Sensitivity: 88 dB (2.83V @ 1 meter full-space, 300-3kHz).
- Recommended amplifier power: 20-300 watts.
2. Speaker Specs:
- Floor Standing Tower Loudspeaker
- Real black oak veneer and piano gloss black finish options
- Dual gold-plated 5-way binding posts

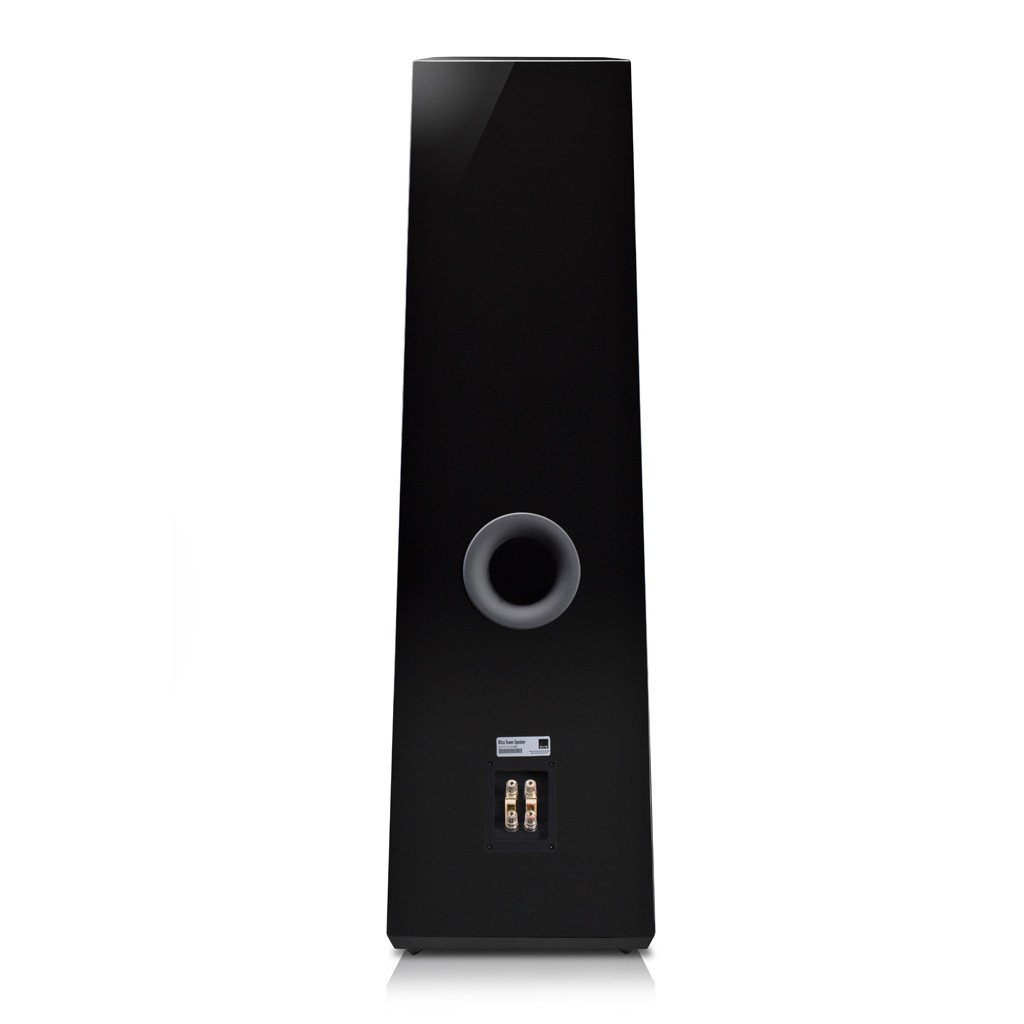

- 3.5″ wide-flared rear-firing port
- Cloth grille with pin/cup retention system
- Elastomer screw-in feet – adjustable for level
- Spiked metal screw-in feet included – adjustable for level
- Cabinet Dimensions: 45.6” (H) x 13.8” (W) x 16.5” (D) (without grille)
- Overall Dimensions: 45.6” (H) x 13.8” (W) x 16.8” (D) (with grille)
- Shipped Dimensions: 50.3″ (H) X 21.3″ (W) X 22.3″ (D)
- Weight Unboxed: 75.4 pounds
- Shipped Weight: 86 pounds
3. Driver Specs:
1” Aluminum Dome Tweeter:
- FEA-optimized diffuser for airy and unveiled presentation
- Aluminum dome delivers exceptional transient response and exceptional stiffness/mass ratio
6.5” Midrange Drivers:
- Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond pass band
- Aluminum shorting ring to reduce gap inductance, lower distortion, and enhance high frequency response
- Cast aluminum basket to ensure precise alignment of critical components and additional heat-sinking capacity
- Vented voice coil former to minimize air compression artifacts at high drive levels

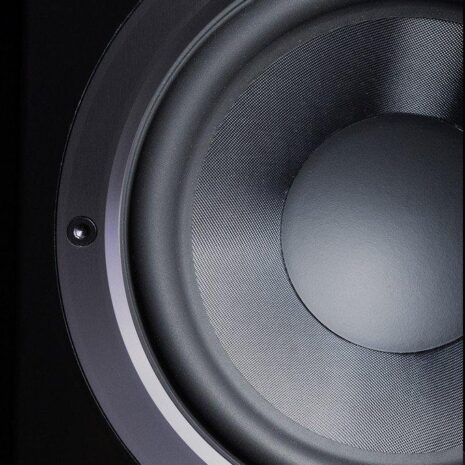

8” Woofers:
- Aluminum shorting rings to reduce gap inductance and lower distortion
- Long stroke motor and suspension for high output
- Vented voice coil formers to minimize air compression artifacts at high drive levels
4. Crossover & Cabinet Specs:
Crossover:
- 3.5-way crossover with premium-grade capacitors, air-core inductors and heavy-trace printed circuit boards
- Unique tapered midrange array miniimizes off-axis lobing and enhances radiated sound power into listening space
- Top midrange-to-tweeter crossover: 2 kHz
- Bottom midrange taper frequency: 700 Hz
- Dual midrange-to-woofer crossover: 160 Hz
Cabinet:
- Separate sealed midrange enclosures minimize top-to-bottom wall dimensions and shift standing waves beyond the
driver pass band, minimizing negative driver interaction and associated frequency response degradation - Non-parallel cabinet panels reduces axial standing waves within the cabinet, reducing frequency response coloration
- Acoustically transparent and FEA optimized grilles, wedge-shaped front baffle and flush-mounted
drivers all contribute to reduced edge diffraction and improved on-axis high frequency response - FEA-optimized bracing, 1″ thick midrange/tweeter baffles and 1.5″ thick woofer baffles eliminates structural
resonances and ensures the cabinet remains acoustically inert for uncolored response even at the highest drive levels
