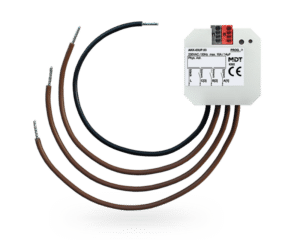

MDT Switch Actuator 3-fold, flush mounted, 10 A, 14 μF, 2ECG, 230VAV, Fan coil
Switch Actuator 3-fold, flush mounted, 10 A, 14 µF, 2 ECG, 230 V AV, Fan coil. Flush mounted Switch Actuator with monostable relays. Current max. 10 A with ohmic load, 10 A with 14 μF / 2 ECG.Fan coil mode: Control of 3-speed fans/ventilator convectors. Outputs are interlocked. Direct operation by three 1 Bit objects or a single 1 Bit object (+/-). Automatic operation by 1 Byte control value (0-100 %). Suitable for 2-pipe systems and 4-pipe systems. Output objects to control valves for heating/cooling. Day/Night function to limit fan speed at night. Emergency operation if variable fails.Switch Actuator mode:. NO and NC contact operation. Time functions (switch-on/switch-off delay). Staircase light function with adjustable warning time. Status response (active/passive) for each channel. Logical linking of binary data, 8 scenes per channel. Central switching functions and block functions. Adjustable behaviour in case of bus voltage failure or return. Flush mounted in an installation box. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. Quick application download (long frame support for ETS5). 3 year warranty.
Brand | MDT |
---|
