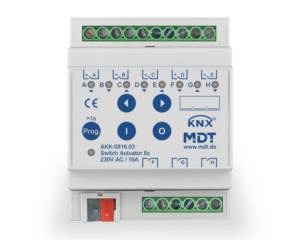

MDT Switch Actuator 8-fold, 4SU MDRC, 16 A, 230 V AC, compact, 70 µF, 10 ECG

Switch Actuator 8-fold, 4SU MDRC, 16 A, 230 V AC, compact, 70 µF, 10 ECG. Compact Switch Actuator with bistable relays. Current max. 16 A with ohmic load, 70 μF / 10 ECG. Function extension. Lockable manual operation and LED indicator for each channel. NO and NC contact operation. Status response at manually operation. Time functions (switch-on/switch-off delay). Extensive staircase light and impulse functions. Status response (active/passive) for each channel. Logical linking of binary data. Extendend scene functions for each channel. Central switching functions and block functions. Adjustable behavior in case of bus voltage failure/return. Separate L-connections. Power supply via KNX bus. Quick application download (long frame support for ETS5). 3 year warranty.
