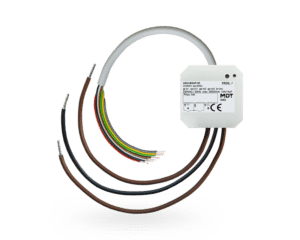

MDT Universal Actuator 2-fold, flush mounted, 10 A, 230 V AC, 14 μF, 2ECG with 4 binary inputs

Universal Actuator 2-fold, flush mounted, 10 A, 230 V AC, 14 µF, 2ECG with 4 binary inputs. Flush-mounted version with monostable relay. Current max. 10 A with ohmic load, 14 μF / 2 ECG. With sun position calculation / shading. Can be used as switch actuator 2-fold or as blind actuator 1-fold. Heating control with PWM 0-100 %. Practical ventilation function (window open/tilted). Automatic shading / slat tracking with sun position calculation. 4 binary inputs for connecting pushbuttons, switches and window contacts. Time functions (switch-on/-off delay, staircase light function). Status response (active/passive) for each channel. Logical linking of binary data, 8 scenes per channel. Central switching functions and block functions. Operation mode blind/shutter adjustable. Running, pause and step time freely adjustable. Adjustable behavior in case of bus voltage failure/return. Dimensions (W x H x D): 41 mm x 41 mm x 22 mm. 3 year warranty.
