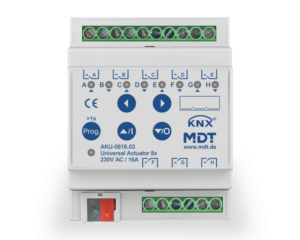

MDT Universal Actuator 8-fold, 4SU MDRC, 16 A, 230 V AC, 100 μF, 15 ECG

Universal Actuator 8-fold, 4SU MDRC, 16 A, 230 V AC, 100 μF, 15 ECG. Compact design with bistable relays. Current max. 16 A with ohmic load, 100 μF / 15 ECG. With sun position calculation / shading. Comprehensive function extension. Can be used as Switch Actuator (max. 8-fold) or Shutter Actuator (max. 4-fold). Mixed applications of Switch- and Shutter Actuator possible. Heating control with PWM 0-100 %. Push Button and LED indicator for each channel. Practical ventilation function (window open/tilted). Automatic shading / slat tracking with sun position calculation. Time functions (switch-on/-off delay, staircase light function). Status response (active/passive) for each channel. Logical linking of binary data, 8 scenes per channel. Central switching functions and block functions. Operation mode blind/shutter adjustable. Running, pause and step time freely adjustable. Adjustable behavior in case of bus voltage failure/return. 4 mm² / 2×2,5 mm² connection terminals. Separate L-connections. 3 year warranty.
