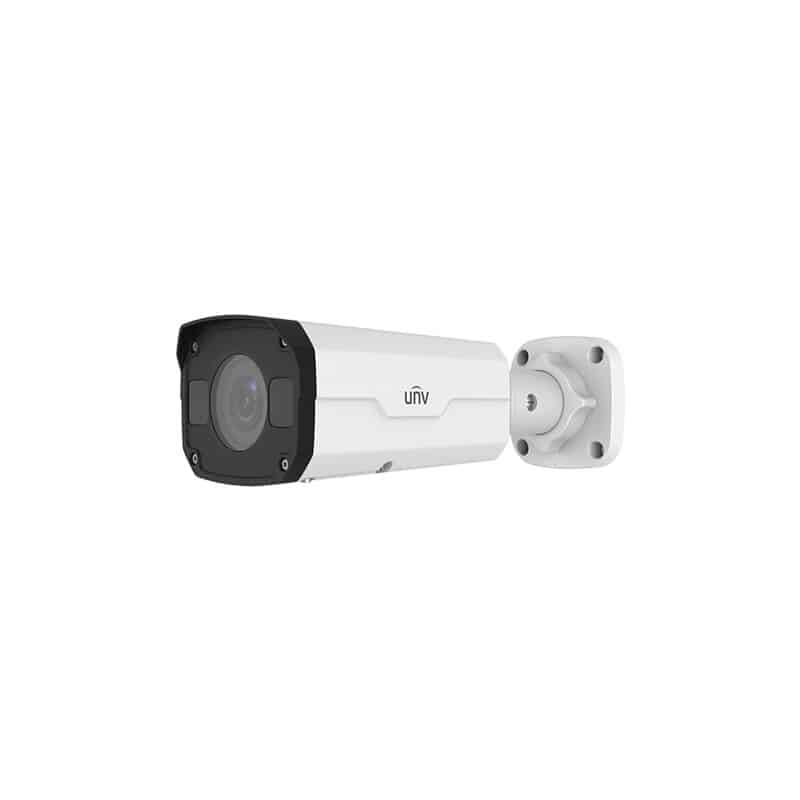

UNV 4MP VF Network IR Bullet Camera

د.إ375

24 people are viewing this right now
17 products sold in last 15 hours
Selling fast! Over 8 people have this in their carts
  • Optics:
  • Day/night functionality
  • SmartIR , up to 30 m (98 ft) IR distance
  • IR anti-reflection window to increase the infrared transmittance
  • 2D/3D DNR (Digital Noise Reduction)
  • Compression:
  • Ultra 265,H.265, H.264, MJPEG
  • Triple streams
  • Network:
  • ONVIF Conformance
  • Structure:
  • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
  • Wide voltage range of ±25%
  • IP67
  • 3-Axis
Hurry! Only 2 items are left in stock (can be backordered)
SKU: IPC2324LB-ADZK-G Categories: ,
IPC2324LBR3-SP-D IPC2324LBR3-SPZ28-D
Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 2.8 ~ 12mm, manual zoom lens 2.8 ~ 12mm, motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.8 63 25.2 12.6 6.3
12 270 108 54 27
Angle of View (H) 91.0° ~ 27°
Angle of View (V) 54.4° ~ 13.7°
Angle of View (O) 118.3° ~ 33.2°
Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360°
Shutter Auto/Manual, 1 ~ 1/100000s
Minimum Illumination Colour: 0.01Lux (F1.6, AGC ON)
0Lux with IR on
Digital noise reduction 2D/3D DNR
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
IR Range Up to 30m (98ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main Profile
Frame Rate Main Stream: 4MP (2592*1520), Max 20fps;
Sub Stream:720P (1280*720), Max 20fps;
Third Stream: D1 (704*576), Max 20fps
Video Bit Rate 128 Kbps~16 Mbps
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 2 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°
Dewarping NA
HLC Supported
BLC Supported
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
Client EZStation
EZView
EZLive
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Network 1 RJ45 100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 7W
Dimensions (L × W × H) 240.3 × 86.4 × 75.6mm (9.46” × 3.4” × 2.98”)
Net Weight 1kg (2.2lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
Brand

UNV
Resolution

4MP
CCTV Type

VARIFOCAL
MIC

YES
Speaker

NO
